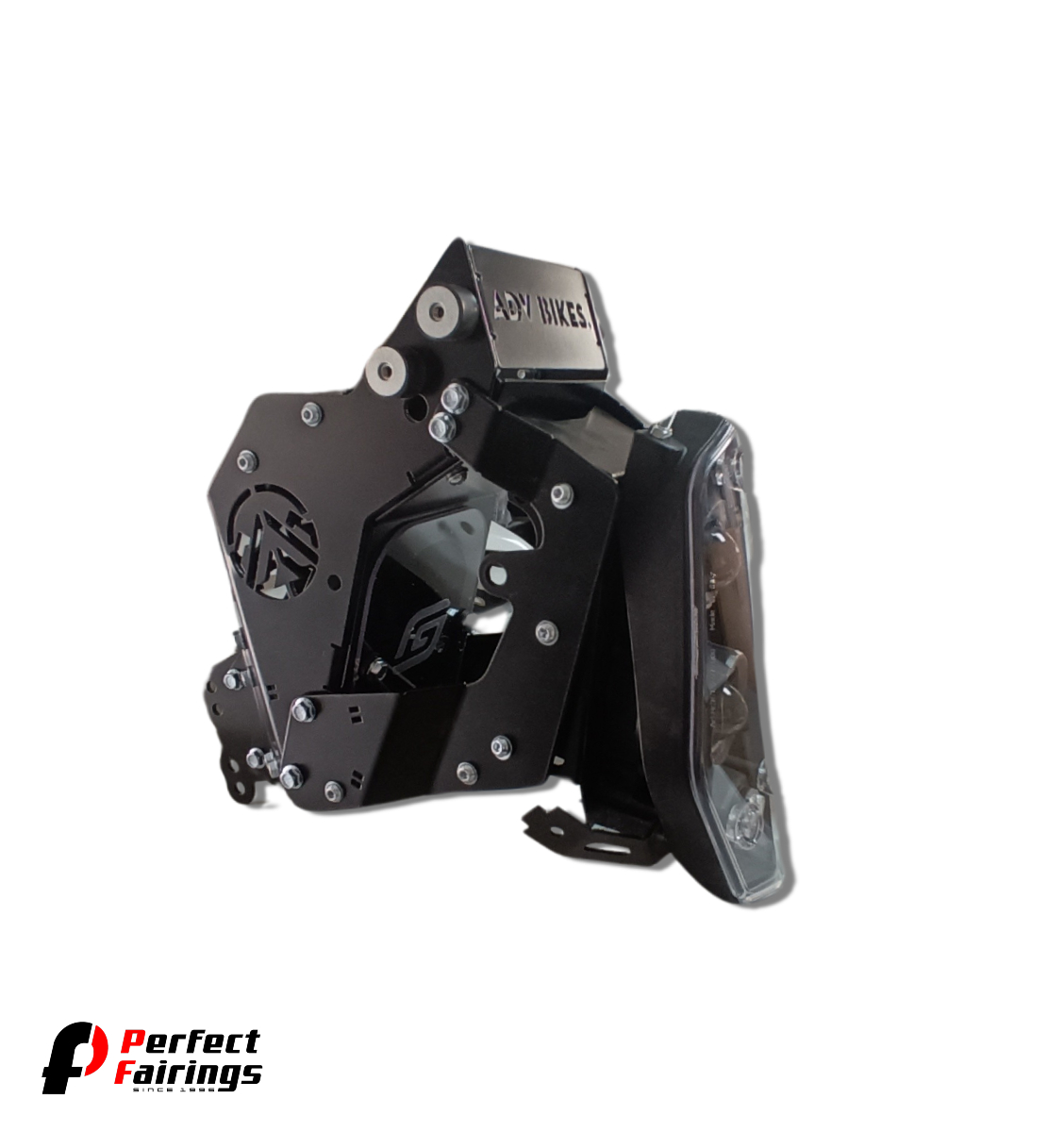

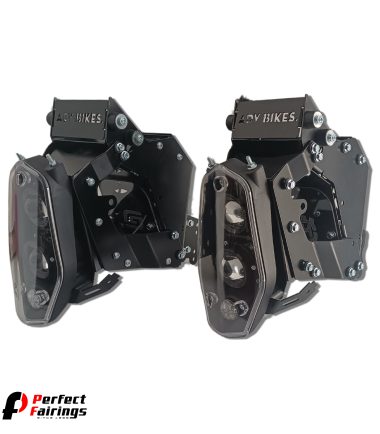

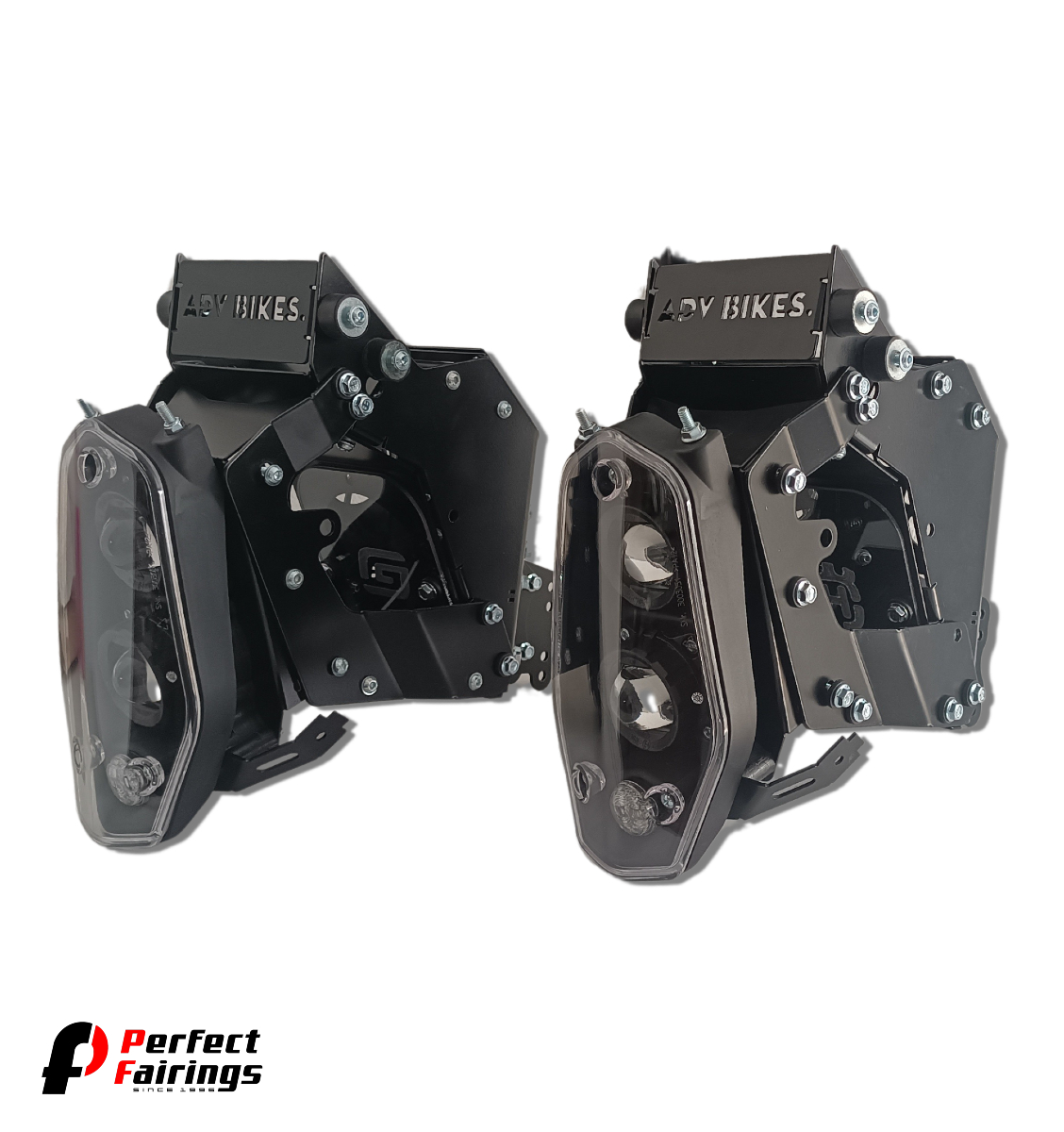

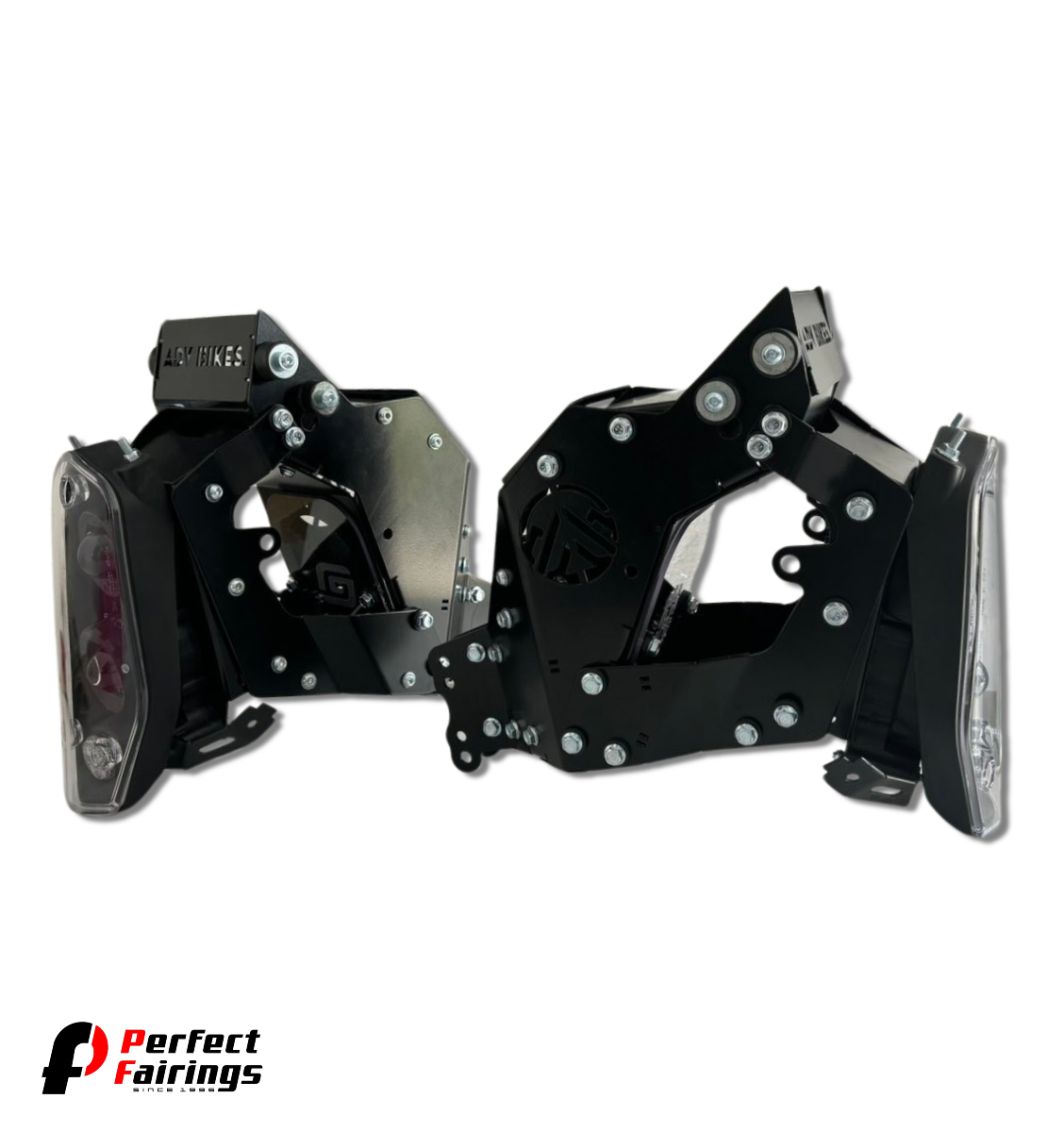

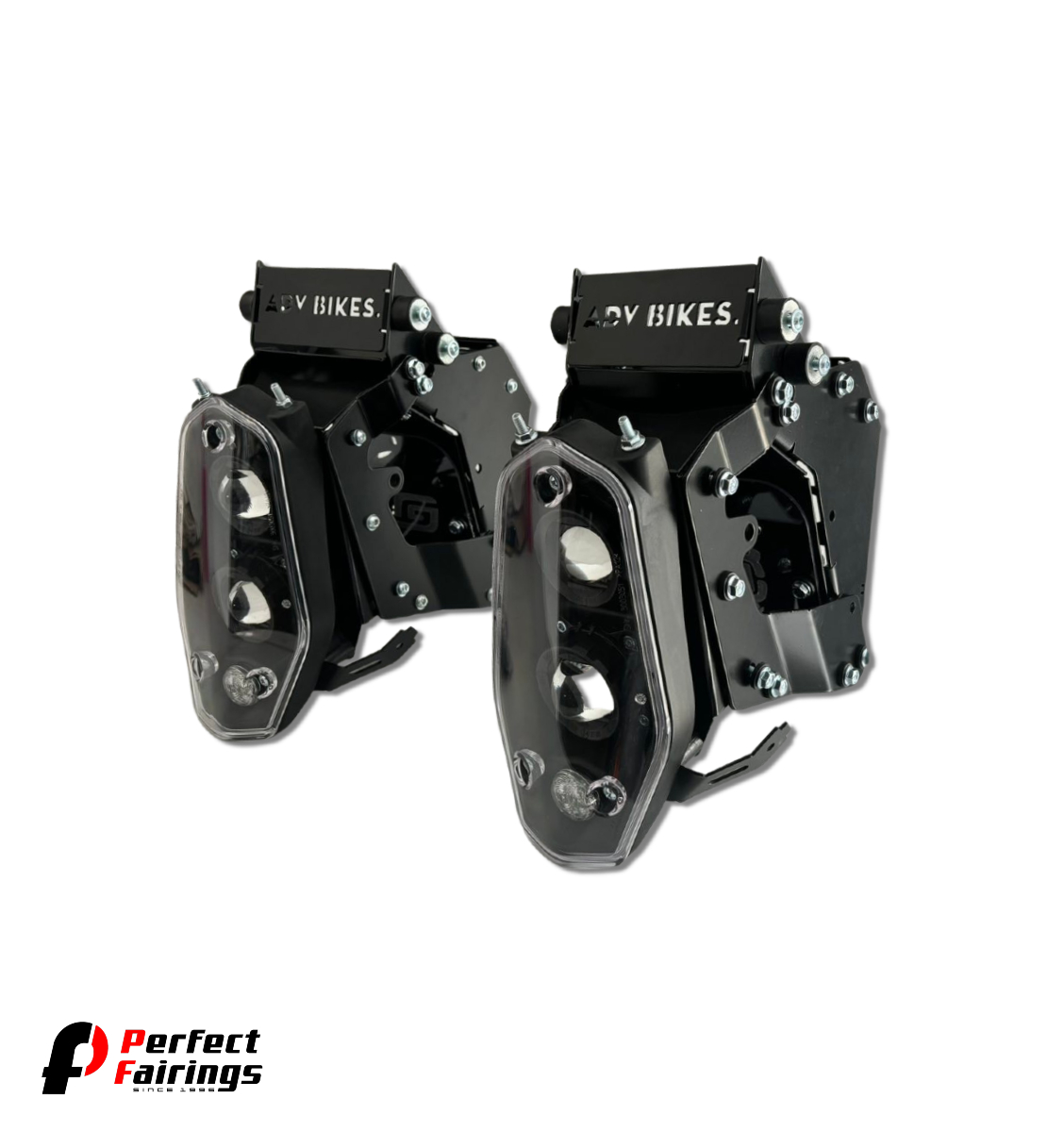

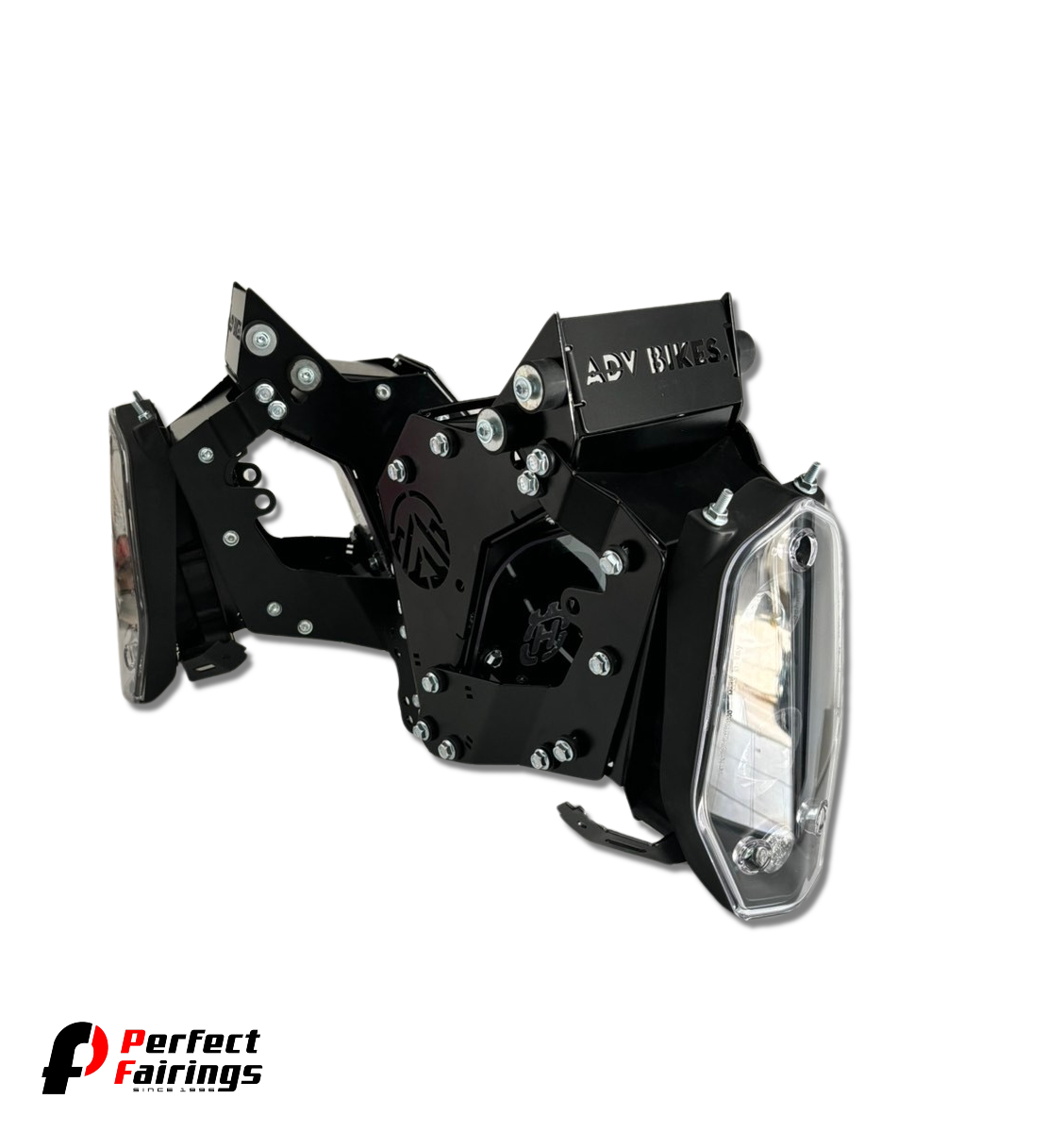

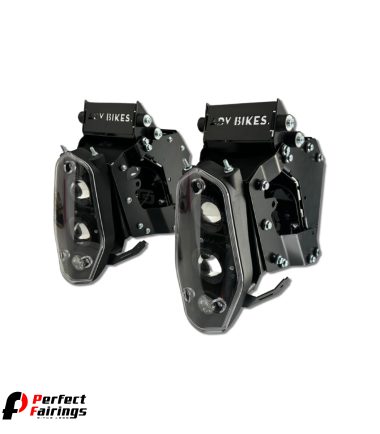

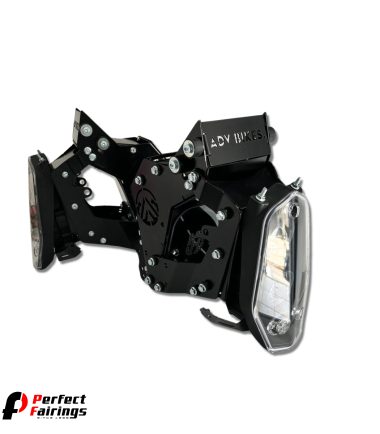

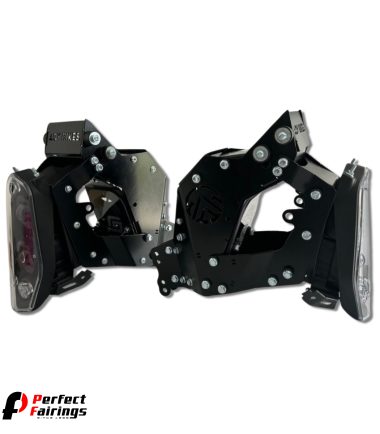

Rally Adventure Navigation Tower GEN2
made to work perfectly with with KTM 450 RFR windshield second generation 2019-2024
This navigation tower designed to work with OEM KTM Rally 2019-2024 windshield .Rally Adventure Navigation Tower GEN2
- comes with all the bolts to fit the OEM KTM Headlight mask
- comes with the Windshield adapter to fit the OEM KTM windshield
- comes with speedo/GPS holder
- made with high grade aluminium
- black coat finish
- designed to work with HELLA LED 60M lights
- NO HEADSTOCK BRACKET ,IT COMES AS EXTRA
- NO HEADLIGHTS INCLUDING
- NO WINDSHIELD OR OTHER OEM PARTS INCLUDING
Navigation Tower works with :
- KTM 690 ENDURO R 2008 – 2018 & 2019 – 2024
- Husqvarna 701 Enduro 2016 – 2024
- Honda XR650R
- BMW G450X
- UNIVERSAL
- GASGAS ES700
- KTM 790 890 2019 2022
- KTM 950 ADVENTURE 990 ADVENTURE
- HUSABERG 570
The smart design of the tower allow you to install the blinkers on the tower , comes with a polycarbonate cover which removed fast and easy and you have access on the cables (comes with LOGO,we can do any custom made after request)
EXTRA PARTS TO COMPLETE YOUR NAVIGATION TOWER :
-Hella LED position light #76414004000
- Article number 2PF 340 825-047
- Inspection Tag E4 11371,ECELight
- Function with position light
- Housing Type Synthetic Material
- Housing Rated Voltage [V]12
- Number of light functions 1
KTM OEM PART NUMBER : #76414004000
Will fit on headlight mask of KTM 450 Rally 2015-2018 , 2019- 2024
– HELLA Module 60 LED Lights
➔ Particularly compact LED headlamp series
➔ Specially developed lens system for homogeneous illumination
➔ Enables easy conversion from halogen to LED technology
PRODUCT FEATURES :
Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA’s compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water.
A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.
Technical data:
Operating voltage/ Rated voltage 12 V Light source type LED
Power consumption 16 W
Colour temperature 6000 K
Protection class IP 6K9K and IP 6K7
Type approval ECE, FMVSS108
Housing Aluminum die cast Protection Overheating and reverse polarity protection Connection TYCO connector (HB3)
Lens material Glass
Manufactured in Austria
Weight 278 g
Including:
Hi beam LED LIGHT
Lo beam LED LIGHT
KTM OEM PART NUMBER :
# 76714001000 – Low beam
# 76714002000 – High beam
-Hella headlights harness
Ideal for DIY projects which use street legal lights Hella modular 60m lights .
This harness comes with 3 plugs
- Hi beam light
- Lo beam light
- Position light
You can choose from different models
-KTM 690 ENDURO 2008-2018
-KTM 690 ENDURO 2019-2024
-HUSQVARNA 701 ENDURO 2016-2024
-KTM 950 990 ADVENTURE
-KTM 790 890 ADVENTURE 2019 2022 (COMES WITH ELIMINATOR)
-UNIVERSAL . This harness comes with an extra plug for the bike side
Made by SmartMoto ,a leader company in Greece
Basic specifications of SmartMoto Electronics cabling products:
• The electrical connectors and cables used are OEM specifications.
• The cabling is wrapped and protected by a special PVC sleeve with a polyester liner or silicone sleeve for applications at temperatures above 160 ° C.
• Where necessary, board and SMD materials are used against through-hole to ensure maximum reliability.
• SmartMoto Electronics R&D, manufacturing and services follow ISO 9001: 2015
MORE PARTS …

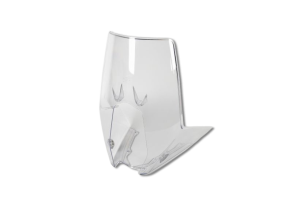

-KTM WINDSHIELD #76708008000
OEM product , DAKAR leader and multiple winner on many many OEM RFR bikes and on custom rally bikes.
- KTM OEM Street legal part
- Dakar tested
- Perfect wind protection
- Extremely strong
- Light weight and flexible
This is the best part to complete your navigation tower system and gine the ultimate look on your bike.

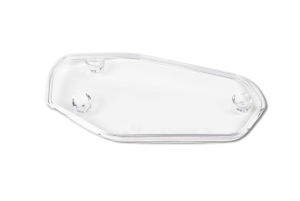

-KTM STONE GUARD #76712079000
- KTM OEM Part
- Maximum protection for your headlight system
- Street legal part

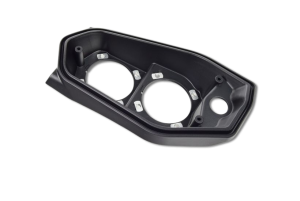

-KTM HEADLIGHT MASK #76708001000
- KTM OEM Part
- Street legal part

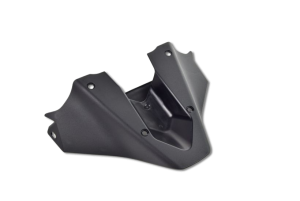

-KTM AIRINLET (PLASTIC WING UNTER WINDSHIELD) #76708011000
- OEM KTM PART
- STREET LEGAL
-Headstock bracket
This is the main part to install the tower on the bike’s frame
- CNC billet part
- Perfect fit
- Light weight
- No weld – drill – glue in order to install it
Please choose your bike model for this product
Rally Adventure Navigation tower
