KTM EXC 2017 2023 models

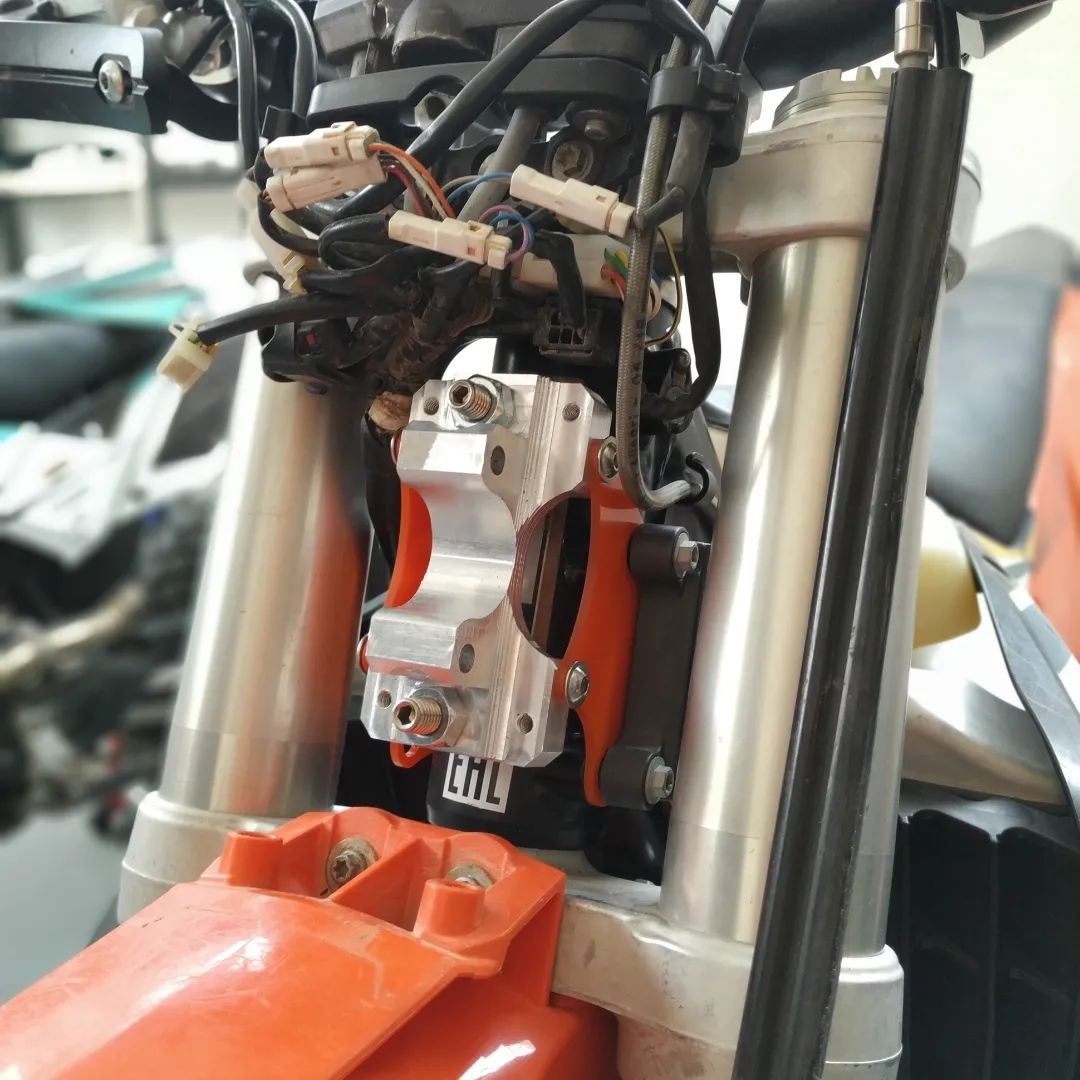

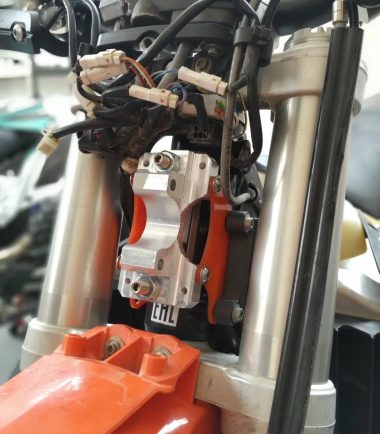

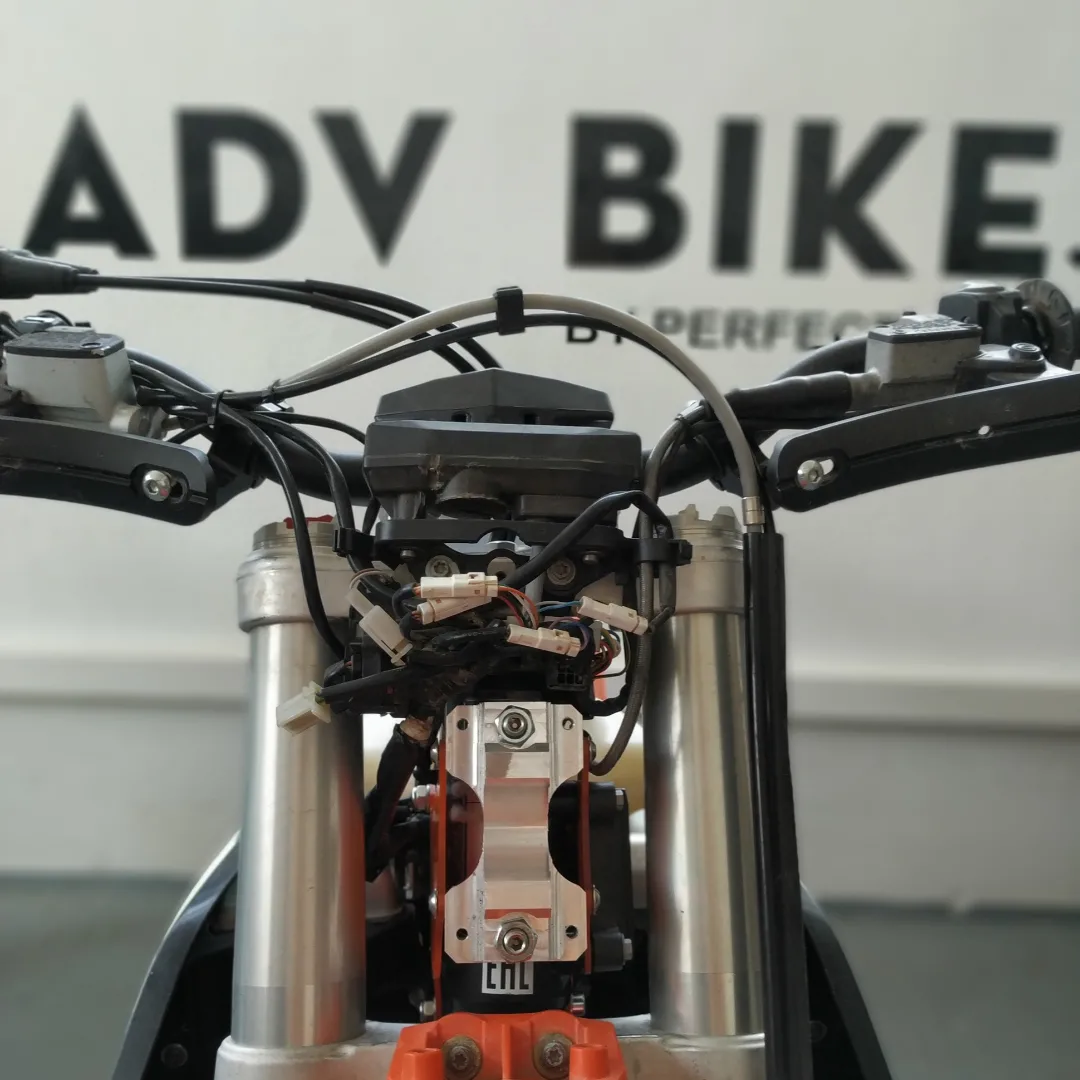

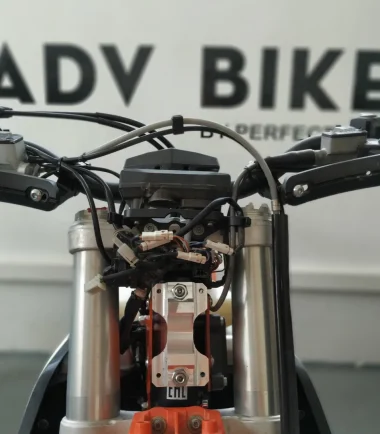

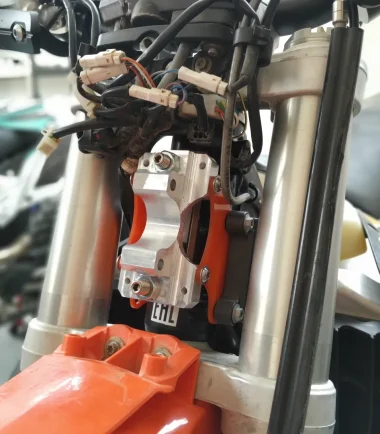

Headstock bracket
- The best product to start with your KTM EXC 2017 2023 Rally project .This is the first part you will need to start with .
- CNC machined,billet aluminium part
- Easy to install
- No weld – drill or glue ,just mount it and use the stock mounting points of your bike
- Comes with everything you need to install it .
- No special tools required

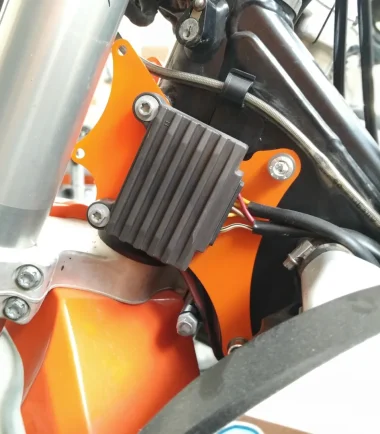

This product design to fit on the frame of your KTM EXC 2017 2023 model with no special powers as requirements .Its really easy , well made and extremely strong . The main parts are CNC milled and the side panels are made of 2mm steel coated matte brack . The bracket kit allow the voltage regulator on its place .

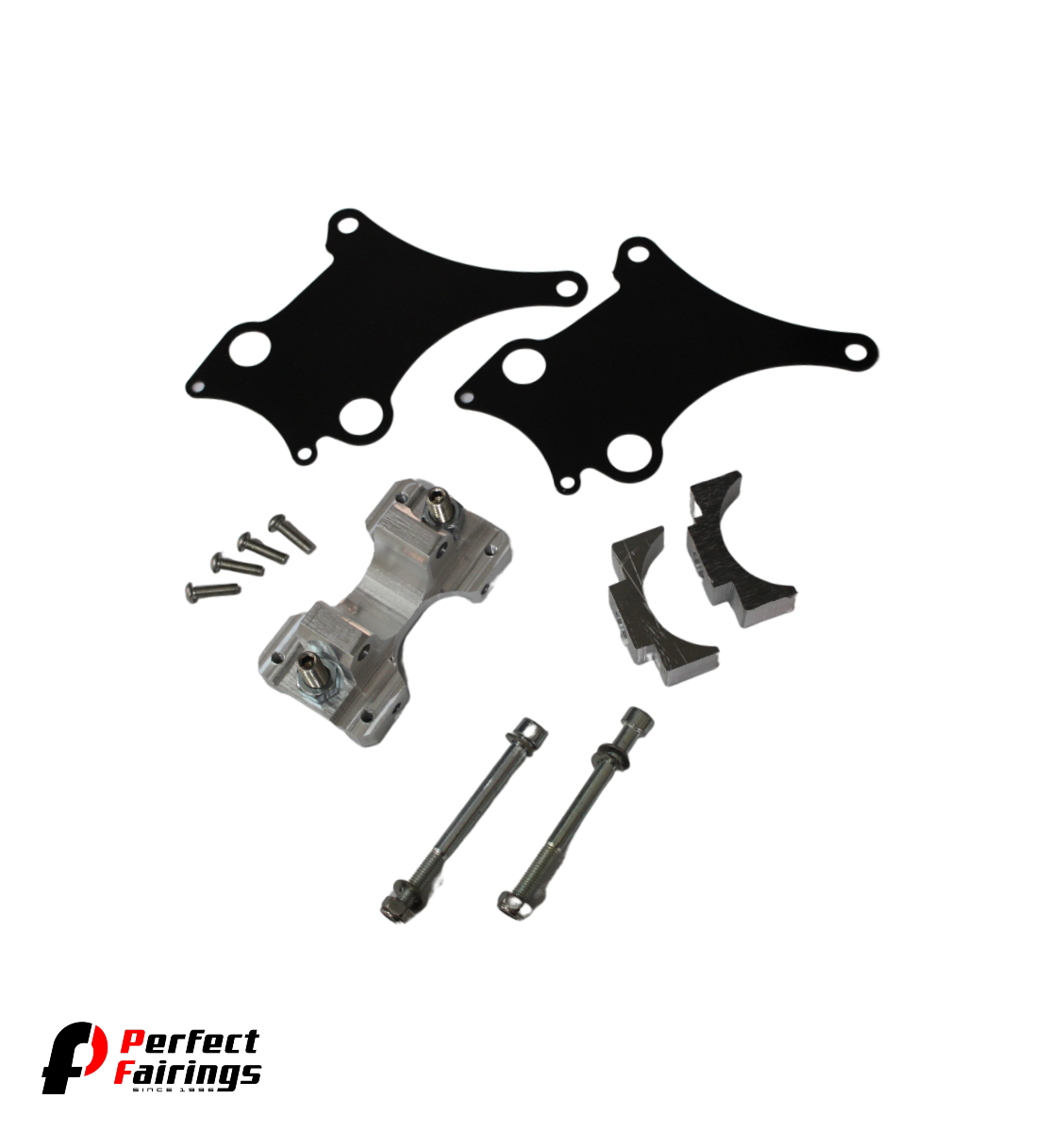

KTM EXC 2017 2023 ,contain :
- Main Headstock bracket
- 2x Tabs

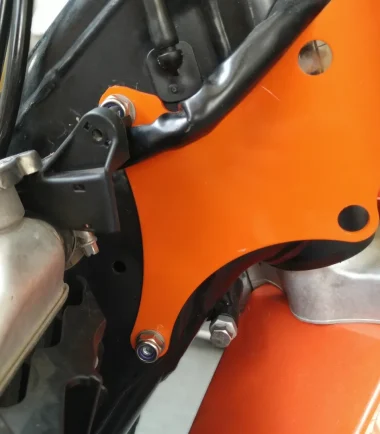

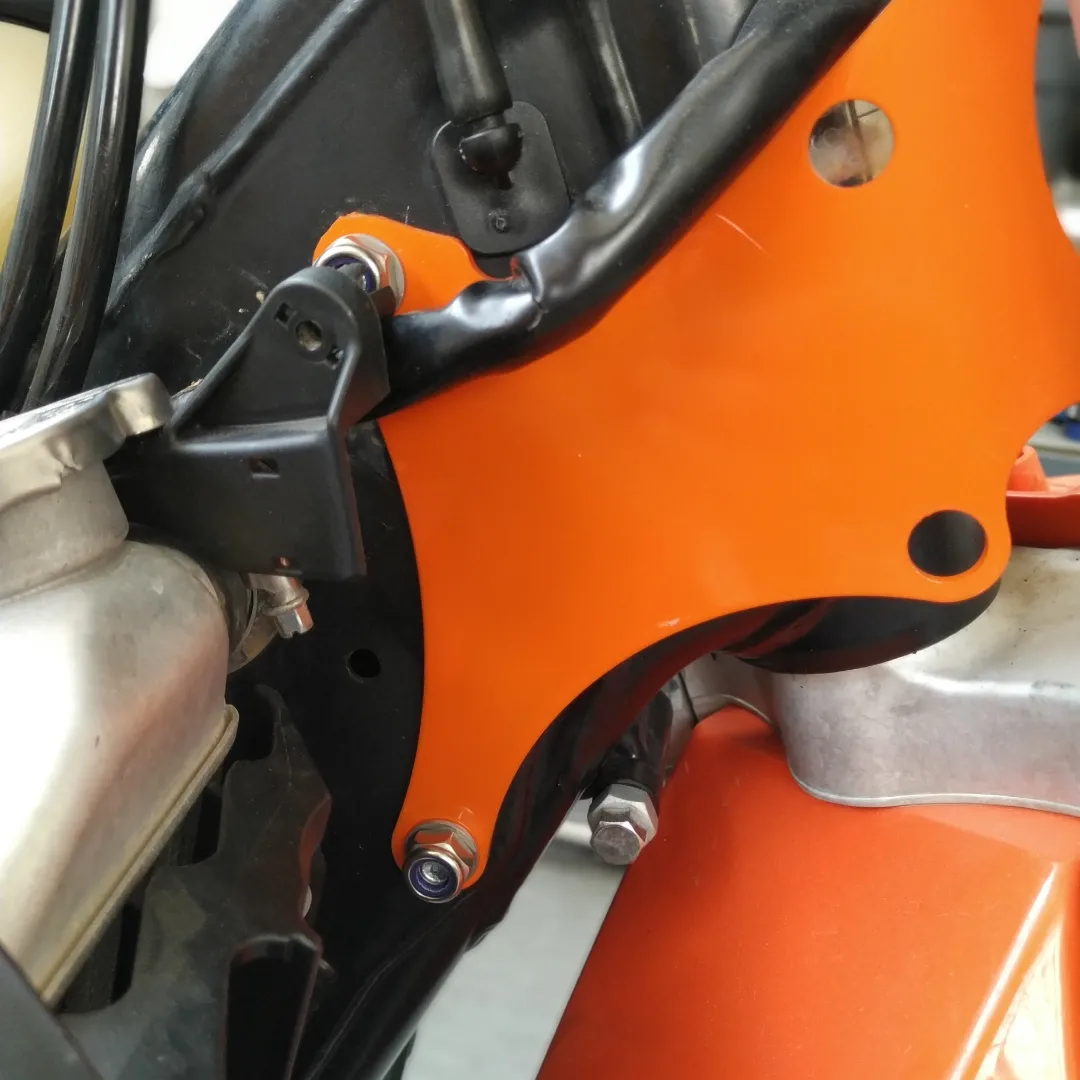

- 2x Side panels
- 2x M8 long screws
- 4x M6 short screws
- 4x M6 long screws
- 2x M10 screws
- 2x M10 nuts
While installation we recomment you to add some threadlocker on all screws except the M10 and the M6 Long screws .
This product will give you the abillity to mount any of our navigation towers and make you EXC model a rally bike . All our rally towers are compatible
Before you install it take care and remove all the stock parts carefully from your machine , gently remove the headlight mask with always following the manufacturer instructions. Gently remoe the zip ties and loosen – remove the screws from voltage regulator in order to be able to add the side panels of the headstock bracket . First install the side panels with the long M8 screws and then continue in the front with the main bracket-tabs . After installing the main headstock bracket secure it with the M10 screws , M6 long screws will also secure the bracket . Pay attention to avoid any missalignment before you secure the strews .
Thank you for your support
