- Main headstock bracket is a bolt on bracket which NOT require weld – drill or glue in order to mount it .
- Side spoilers which comes with the kit are direct replacements of the stock side spoilers .
- Navi tower is designed for OEM speedo and have a lot of free space to add your GPS or other equipment you like . Its made of Aluminium ,coatted black.Its very durable and comes pre assembled .
- Lighting sytem is street legal .Made by Hella,a brand which is choosen from the most auto-moto companies for their vehicles and motorcycles and also is choosen from KTM on all the latest Dakar bikes
- This kit use OEM KTM Windshield (76408008000) ,headlight mask (76408001000) and stoneguard (76412079000)

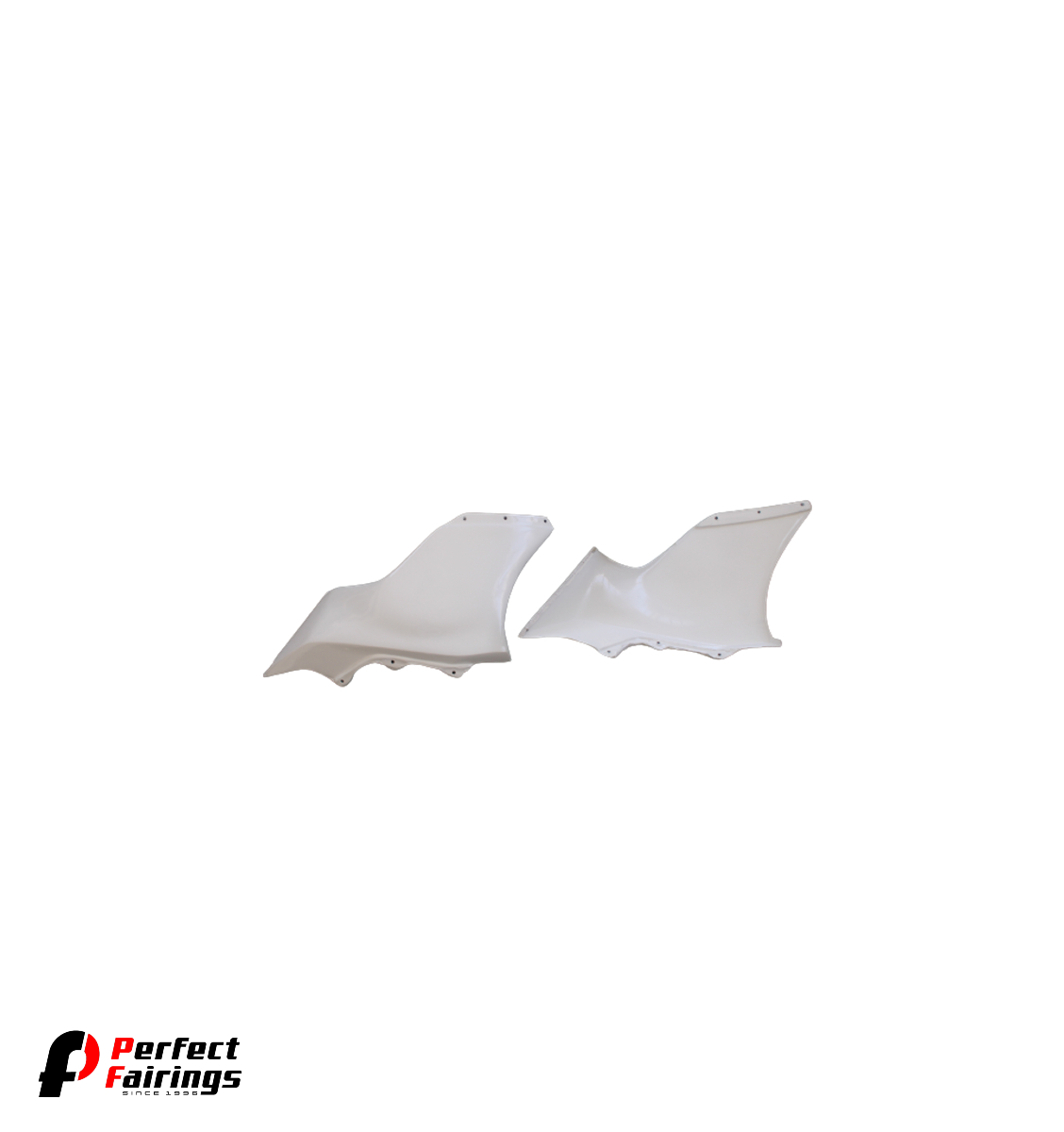

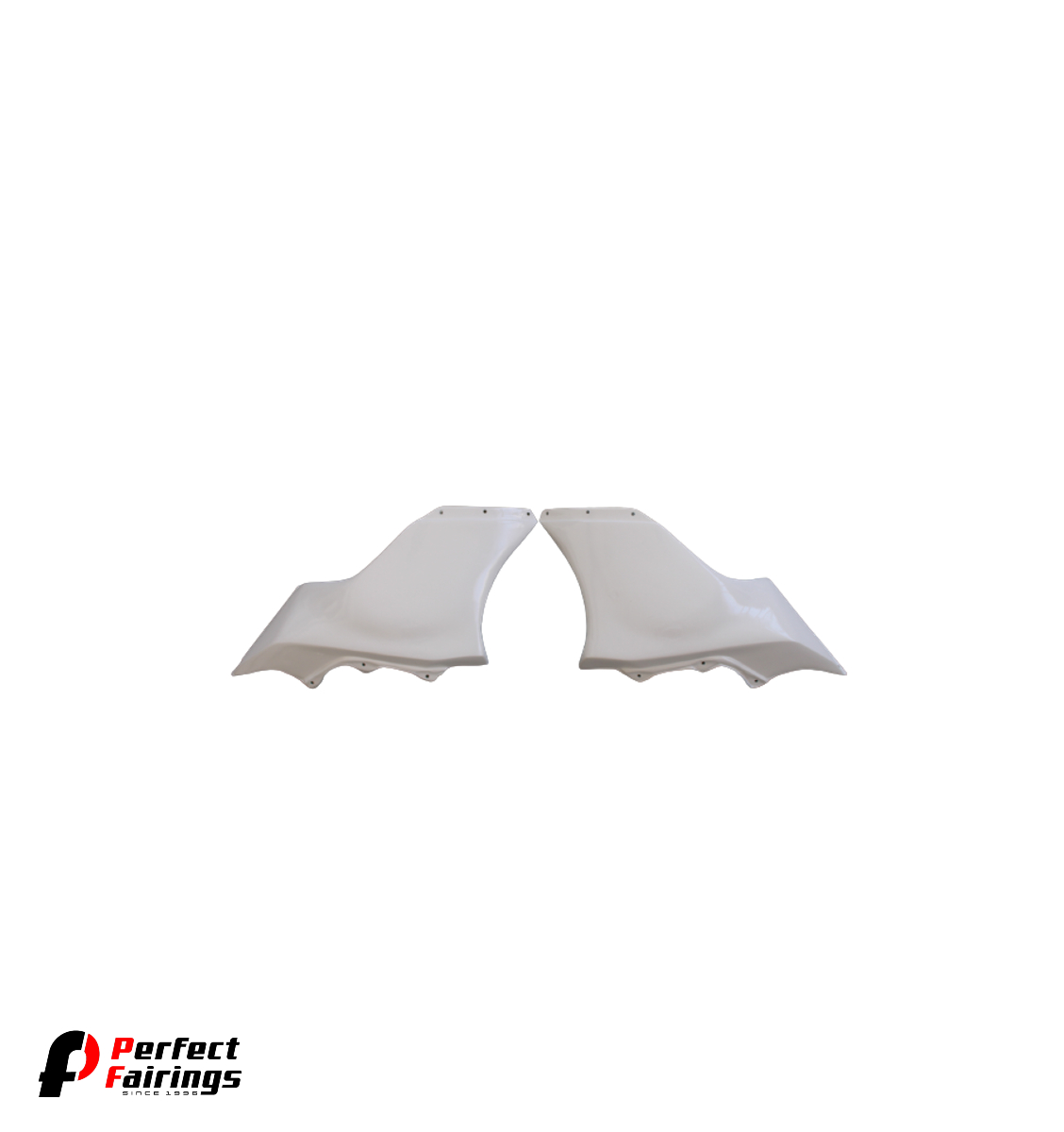

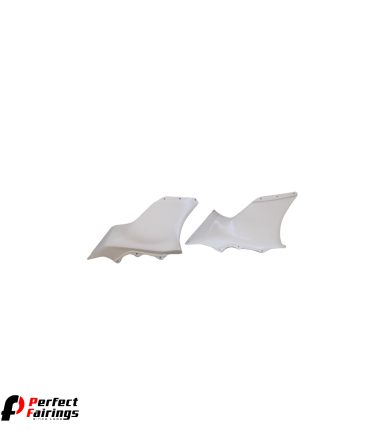

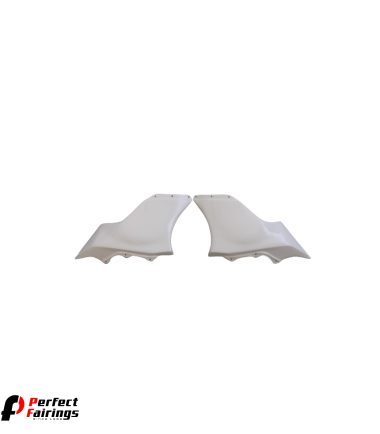

- New side panels ,fiberglass made ,to match the windshield and keep the lines of the bikes looks like a factory product . Lower side panels also included on the kit .
WINSHIELD ,OEM PARTS:
We use the OEM KTM DAKAR RALLY windshield ,headlight mask and stone guard protector for the lights .These parts comes direct from KTM ,they are tested for over 4 Dakar rallies and on the hardest rally raid condition arround the world.

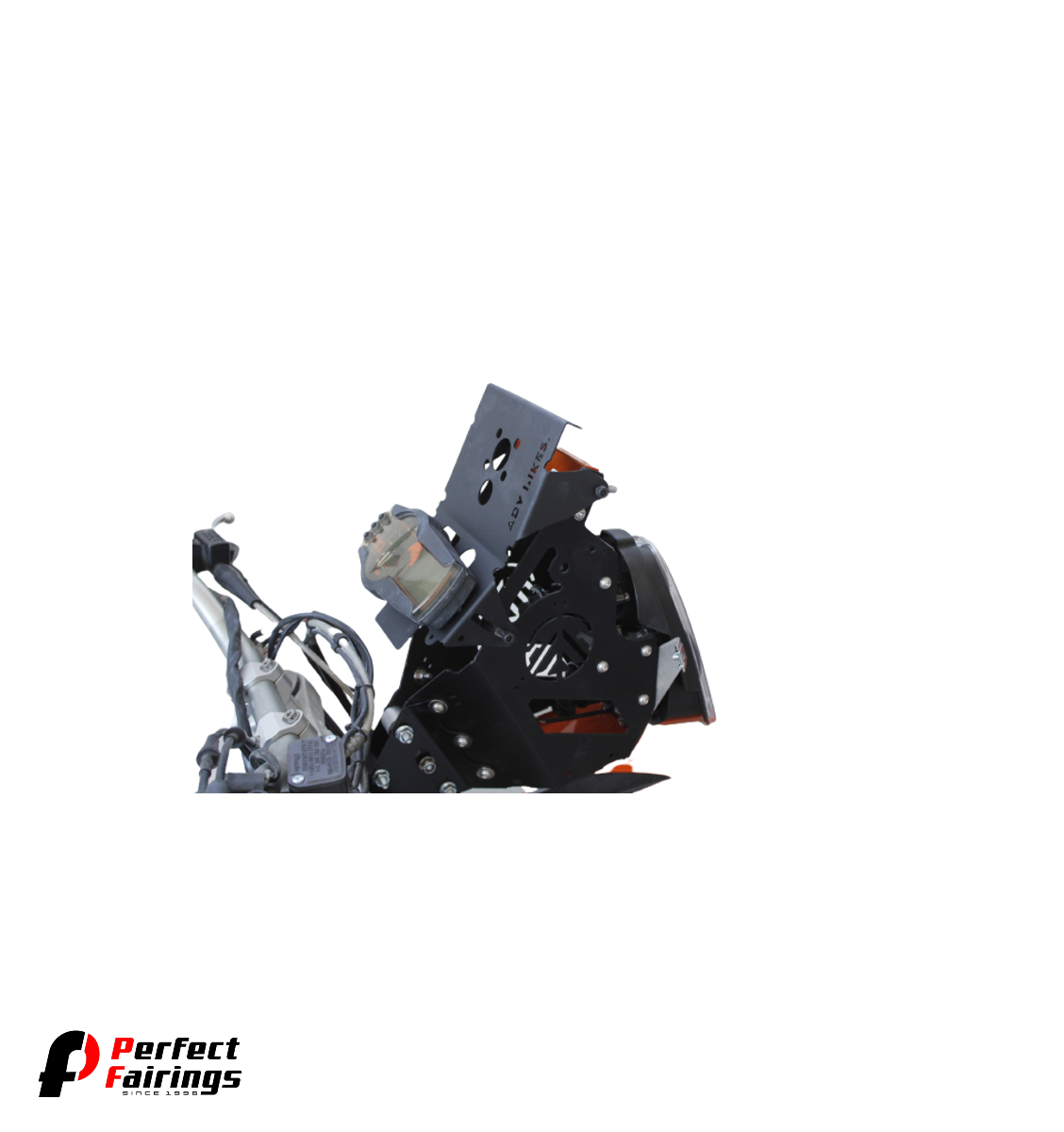

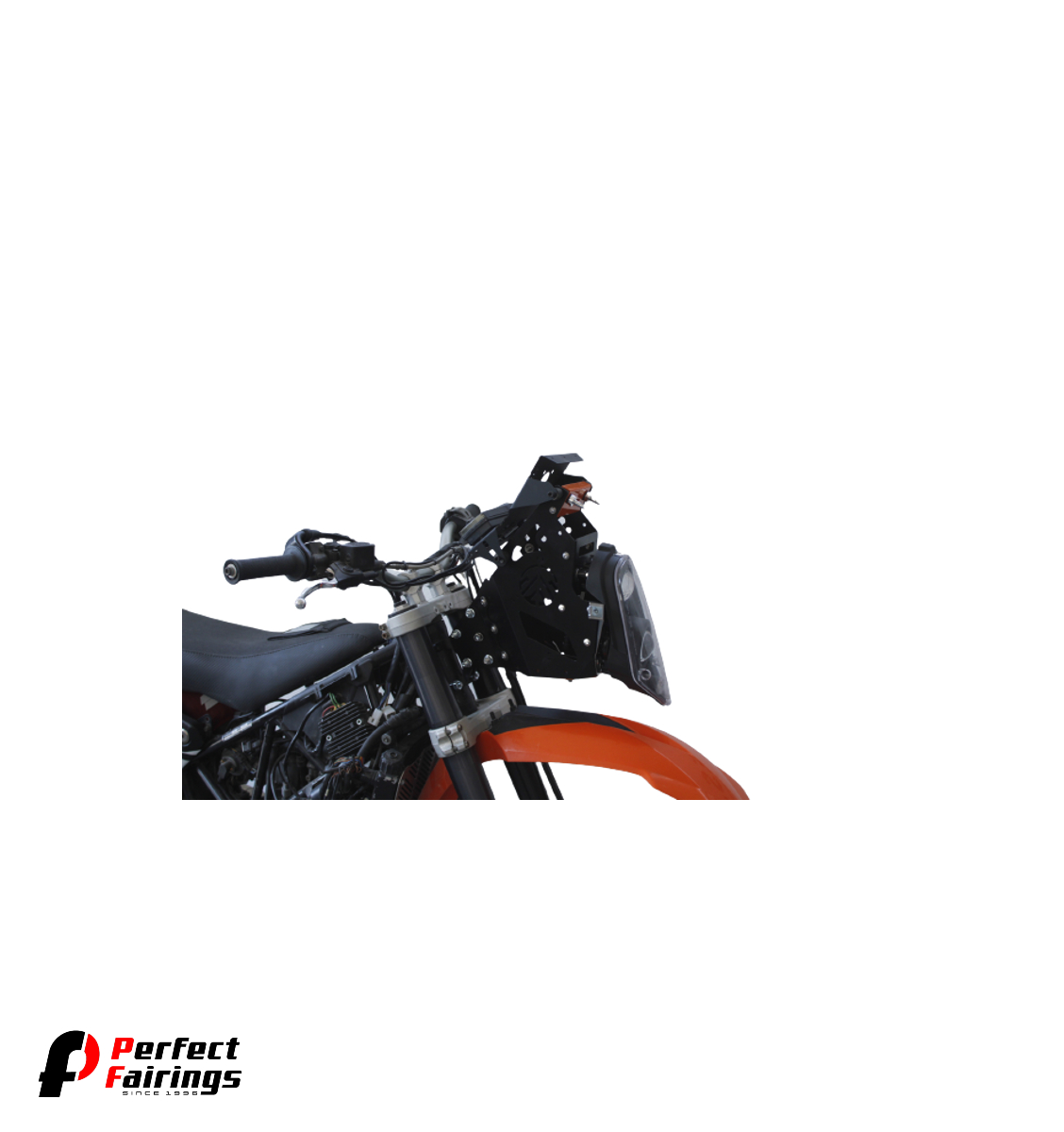

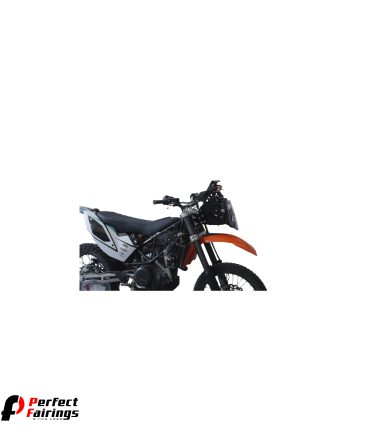

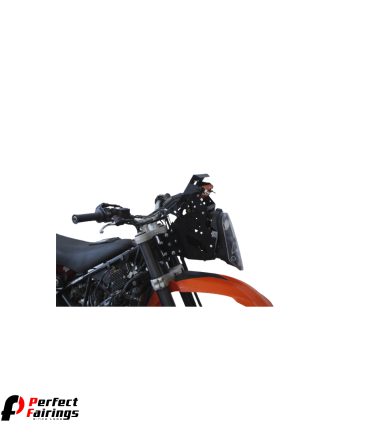

NAVIGATION TOWER:
The navigation tower is made from aluminium and comes ready pre assembled .It comes with bracket for OEM speedo and you can add any GPS or other navigation equipment you have .It fits direct on the bike with the support bracket which comes with the navi tower.
Tower comes ready with pre installed headlight mask ,lights,lights stone guard .
LIGHTING SYSTEM:
We choose to go with OEM lighting system ,as the Dakar bikes and also as many other Auto-Moto industies go .Hella lights Hi-Lo .Comes with plug and play hight quality wiring harness .
Lights details:
60mm High Beam Light
Features:
• Very versatile high beam lamp
• High performance in a compact design
• Exceptional performance and light distribution
Specifications:
• Voltage: 12V
• Beam Pattern: High Beam
• Light Source: HB3 / 9005 12V/65W Bulb (T3-1/4 12V/3W (W3W) Bulb)
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: (021) ECE/SAE (031) ECE
60mm Low beam light
Features:
• Very versatile low beam lamp
• High performance in a compact design
• Exceptional performance and light distribution
Specifications:
• Voltage: 12V
• Beam Pattern: Low Beam
• Light Source: HB3 / 9005 12V/65W Bulb
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: SAE (For Motorcycles only) / ECE
This kit can update on a full Rally Adv kit with our fuel tanks on a later stage !
*
Please allow us 2-3 weeks after payment for preparation
