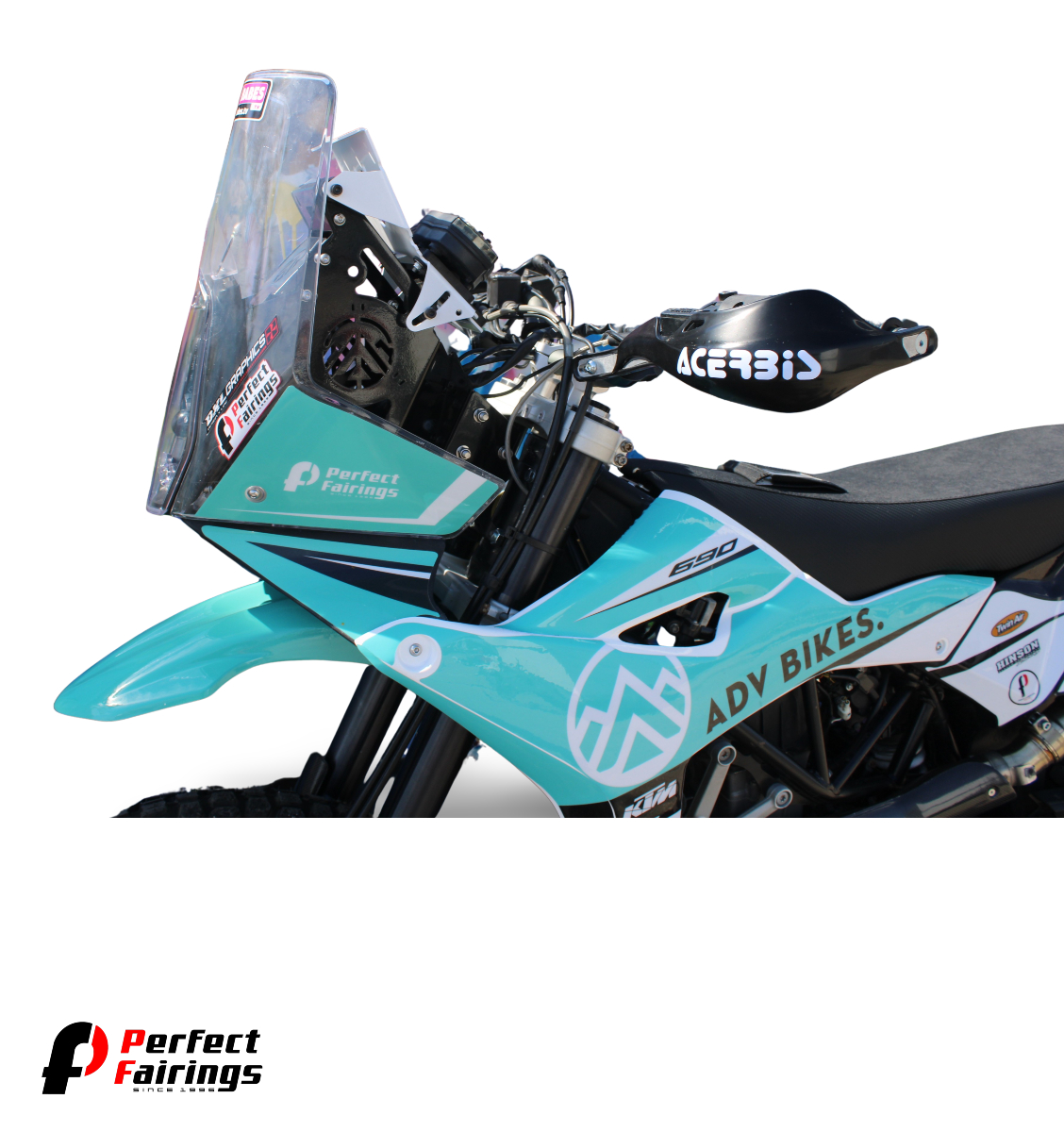

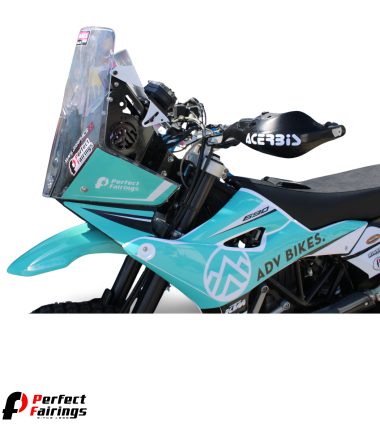

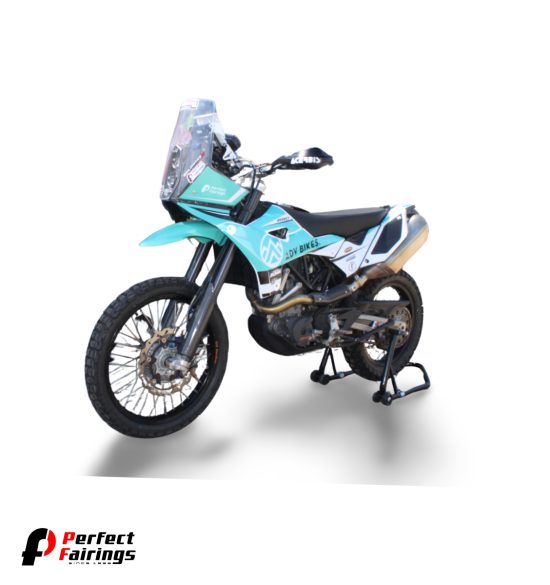

KTM 690 Enduro GEN3
2008 2018 Rally kit
New design , updated parts, easy and plug n play kit!
If you are looking for a kit which will make your ride a pleasure and your bike a dream rally/adventure bike then you are looking on the right place.
After hard work and many months on the design our new kit is here.
- One piece side panels made from High quality woven roving fiberglass
- High quality eco polyester resins
- Very strong and light weight
- Navigation tower with place for OEM Speedo and a lot of space to add your GPS – TABLET -MOBILE PHONE
- Hella street legal LED lights , CE Homologation papers available
- Plug and play wiring harness
- OEM KTM Windshield – 76708008000
- OEM AIR INLET – 76708011000
- OEM KTM Headlight mask – 76708001000
- OEM KTM stone chip guard – 76712079000
- Maing headstock bracket ,no drill or weld require direct fit on the main headstock .Very strong. CNC machined
This fairing kit comes ready to install it on your bike.
- Main headstock bracket is a bolt on bracket which NOT require weld – drill or glue in order to mount it .
- Side spoilers which comes with the kit are direct replacements of the stock side spoilers .
- Navi tower is designed for OEM speedo and have a lot of free space to add your GPS or other equipment you like . Its made of Aluminium ,coatted black.Its very durable and comes pre assembled .
- Lighting sytem is street legal .Made by Hella,a brand which is choosen from the most auto-moto companies for their vehicles and motorcycles and also is choosen from KTM on all the latest Dakar bikes
- This kit use OEM KTM Windshield ,headlight mask and stoneguard
- New side panels ,fiberglass made ,to match the windshield and keep the lines of the bikes looks like a factory product .
WINSHIELD ,OEM PARTS:
We use the OEM KTM DAKAR RALLY windshield ,headlight mask and stone guard protector for the lights .These parts comes direct from KTM ,they are tested for over 4 Dakar rallies and on the hardest rally raid condition arround the world.
NAVIGATION TOWER:
The navigation tower is made from aluminium and comes ready pre assembled .It comes with bracket for OEM speedo and you can add any GPS or other navigation equipment you have .It fits direct on the bike with the support bracket which comes with the navi tower.
Tower comes ready with pre installed headlight mask ,lights,lights stone guard .
The speedometer support plate use 4 high quality antivabration rubbers in order to give the best stability for your equipment .
The clever design of the navigation tower will give you an easy installation :
- Slots on the sides for zipties ,an easy way to keep all the cables together
- Big opening on the bottop and also on the sides , you can easily work on the cables or remove any plug easy and fast
- Removable speedo support ,this is the best part as many many people asking ” Can i use the tower on other models without spending a fortune on new parts ?” The answer now is YES . We have designed the support in that way so you can just remove the plastic speedo holder and put a new one with zero costs
- The Speedo – GPS support is designed to be adjustable , so you can fix it as you like it
LIGHTING SYSTEM:
We choose to go with OEM lighting system ,as the Dakar bikes and also as many other Auto-Moto industies go .Hella lights Hi-Lo .Comes with plug and play hight quality wiring harness .
Lights details:
Module 60 LED
Particularly compact LED headlamp series
Specially developed lens system for homogeneous illumination
Enables easy conversion from halogen to LED technology
PRODUCT FEATURES :
Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA’s compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water.
A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.
Technical data:
Operating voltage/ Rated voltage 12 V Light source type LED
Power consumption 16 W
Colour temperature 6000 K
Protection class IP 6K9K and IP 6K7
Type approval ECE, FMVSS108
Housing Aluminum die cast Protection Overheating and reverse polarity protection Connection TYCO connector (HB3)
Lens material Glass
Manufactured in Austria
Weight 278 g
Including:
Hi beam LED LIGHT
Lo beam LED LIGHT
KTM OEM PART NUMBER :
# 76714001000 – Low beam
# 76714002000 – High beam
KTM 690 Enduro GEN3 , 2008 2018 Rally kit
