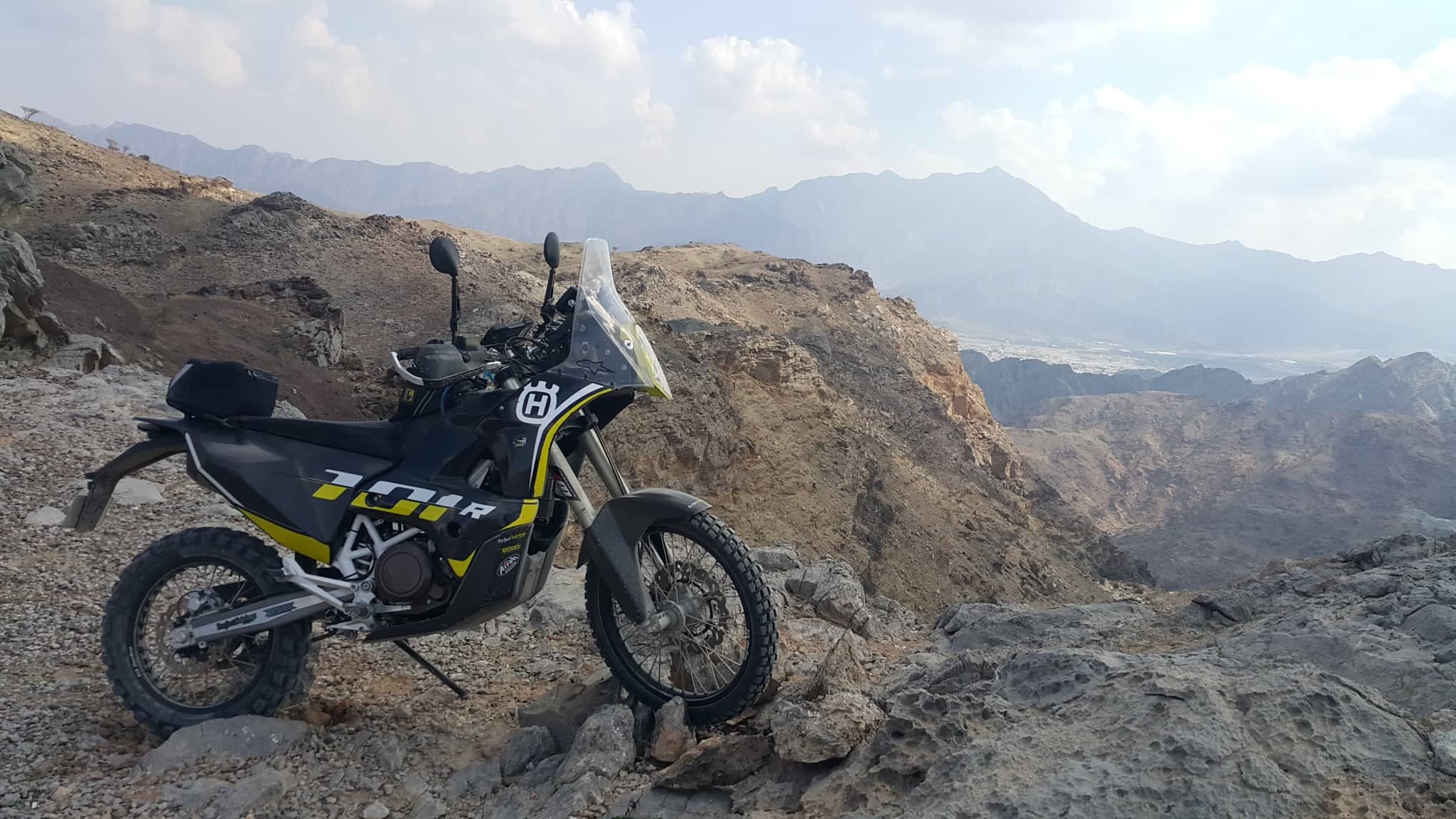

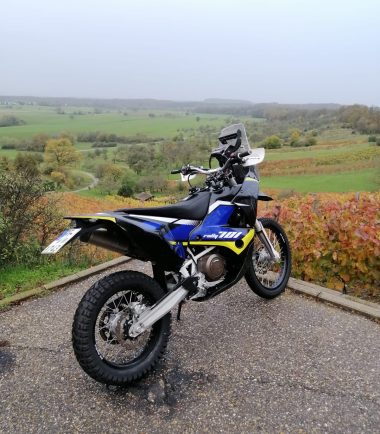

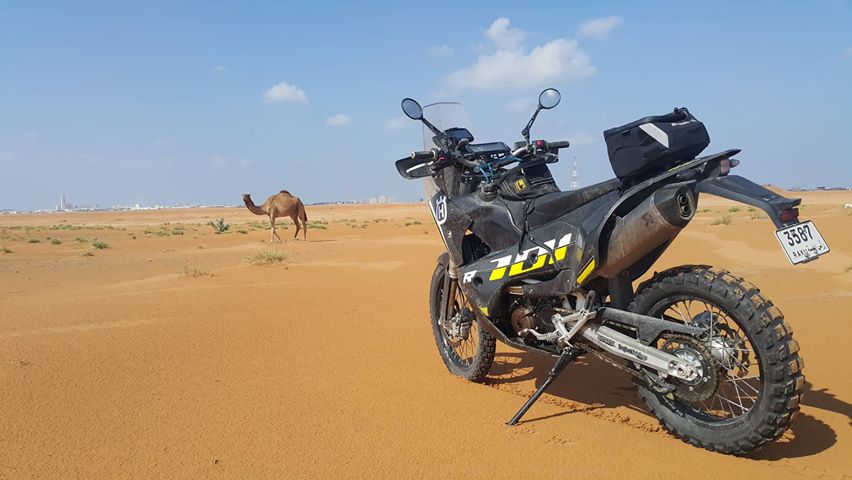

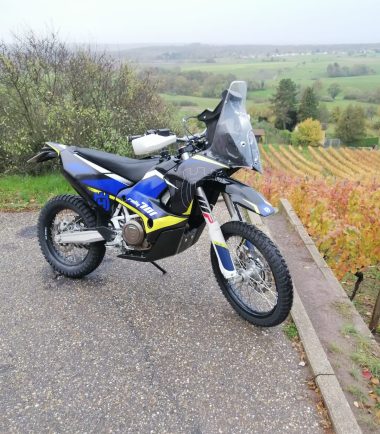

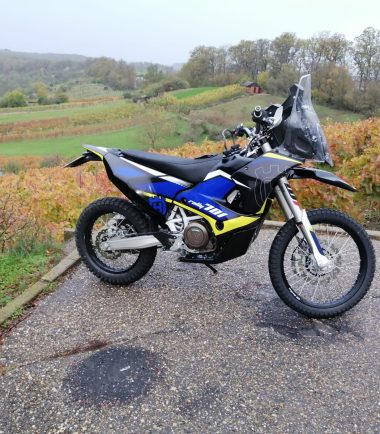

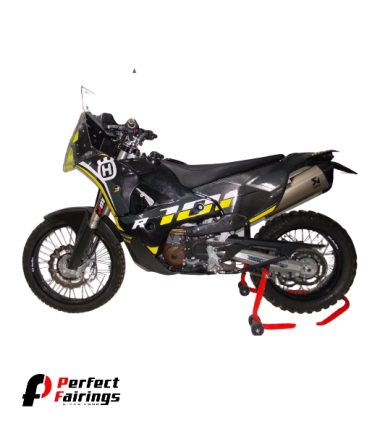

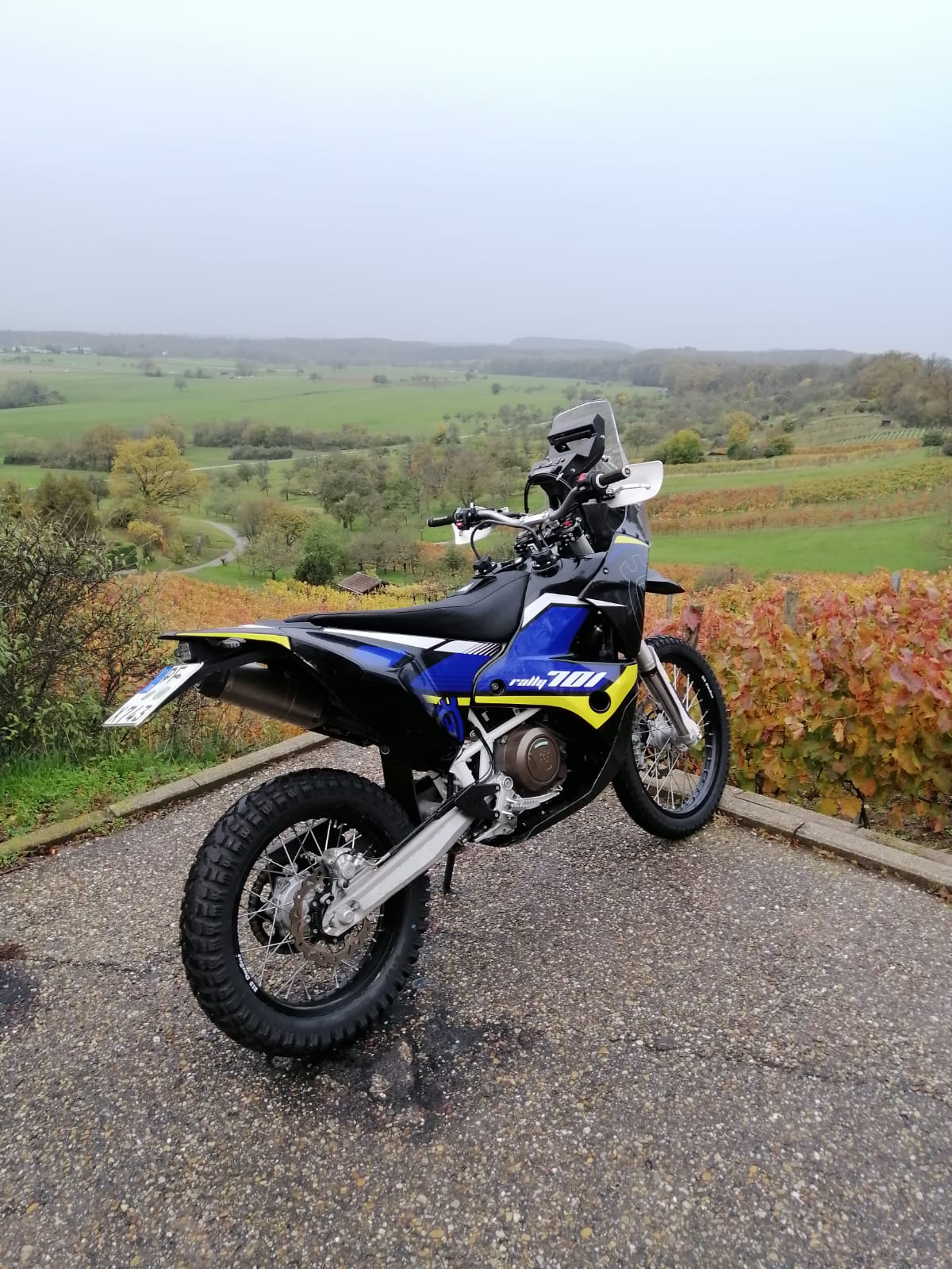

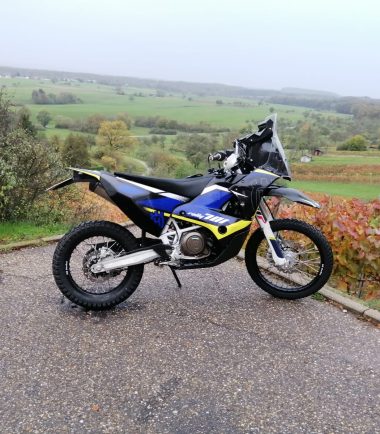

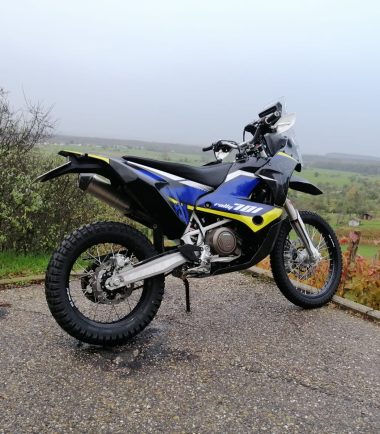

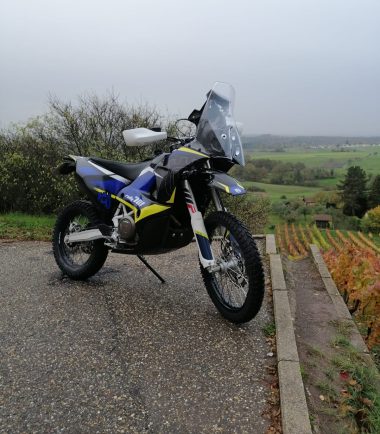

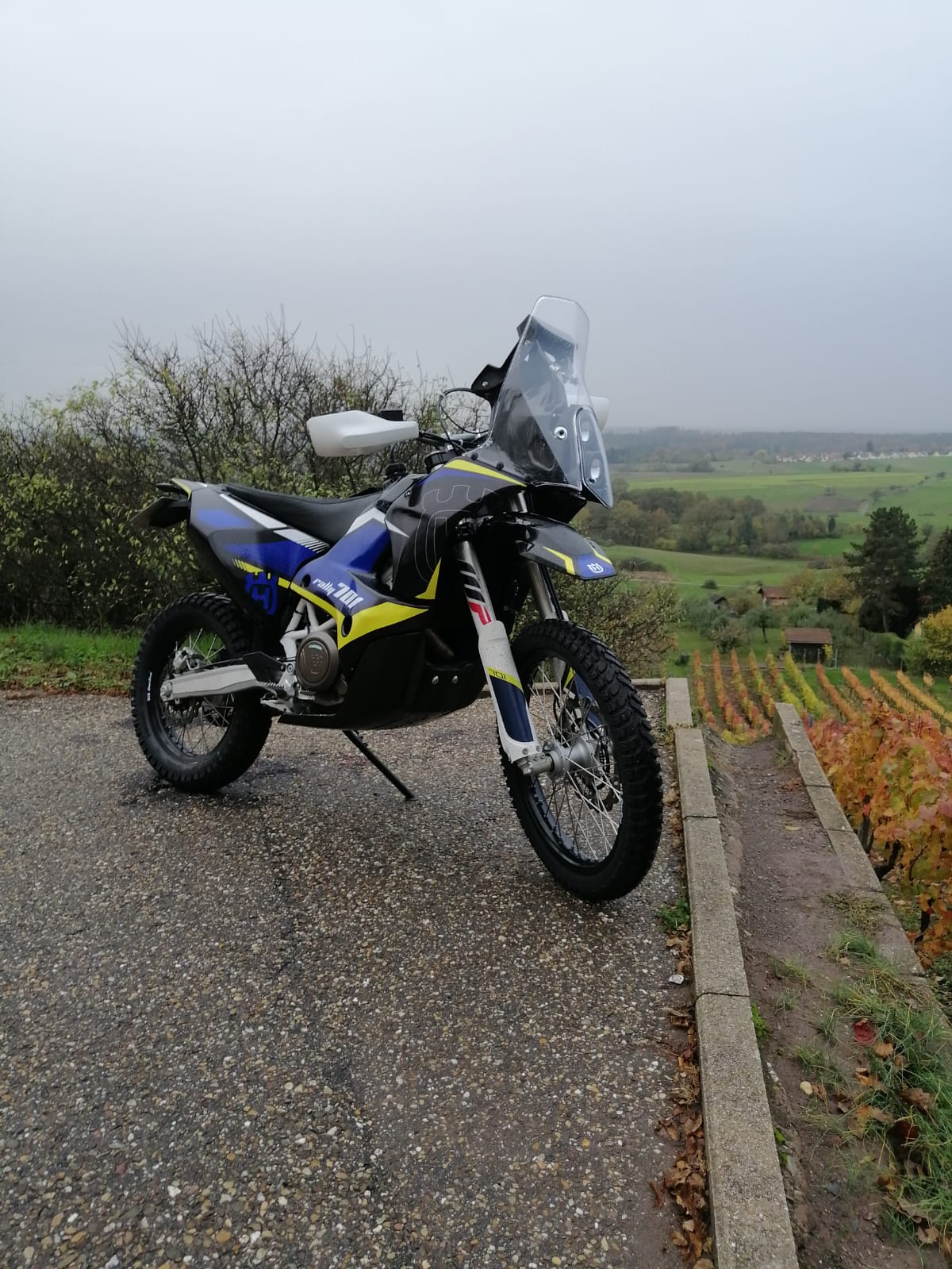

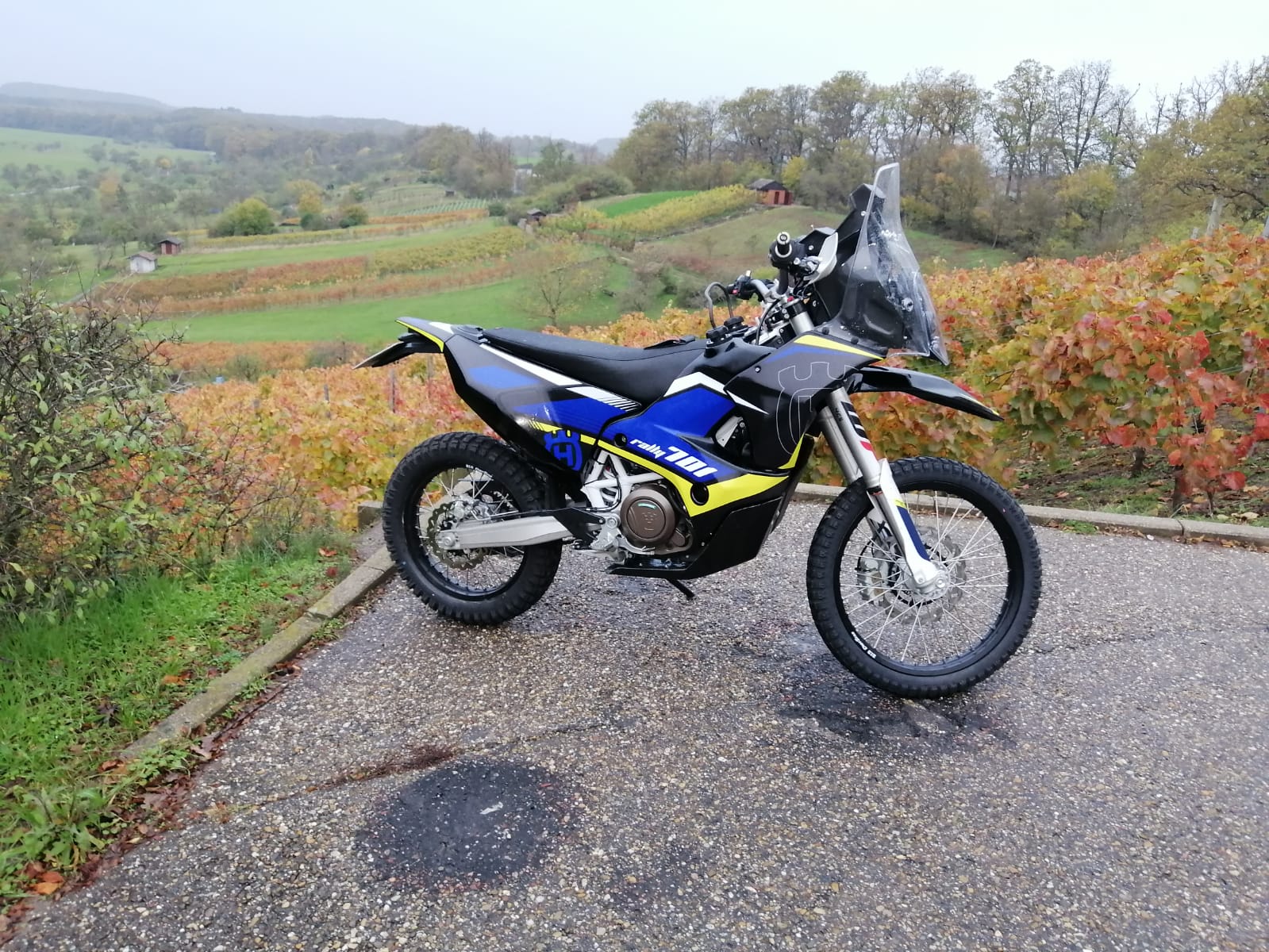

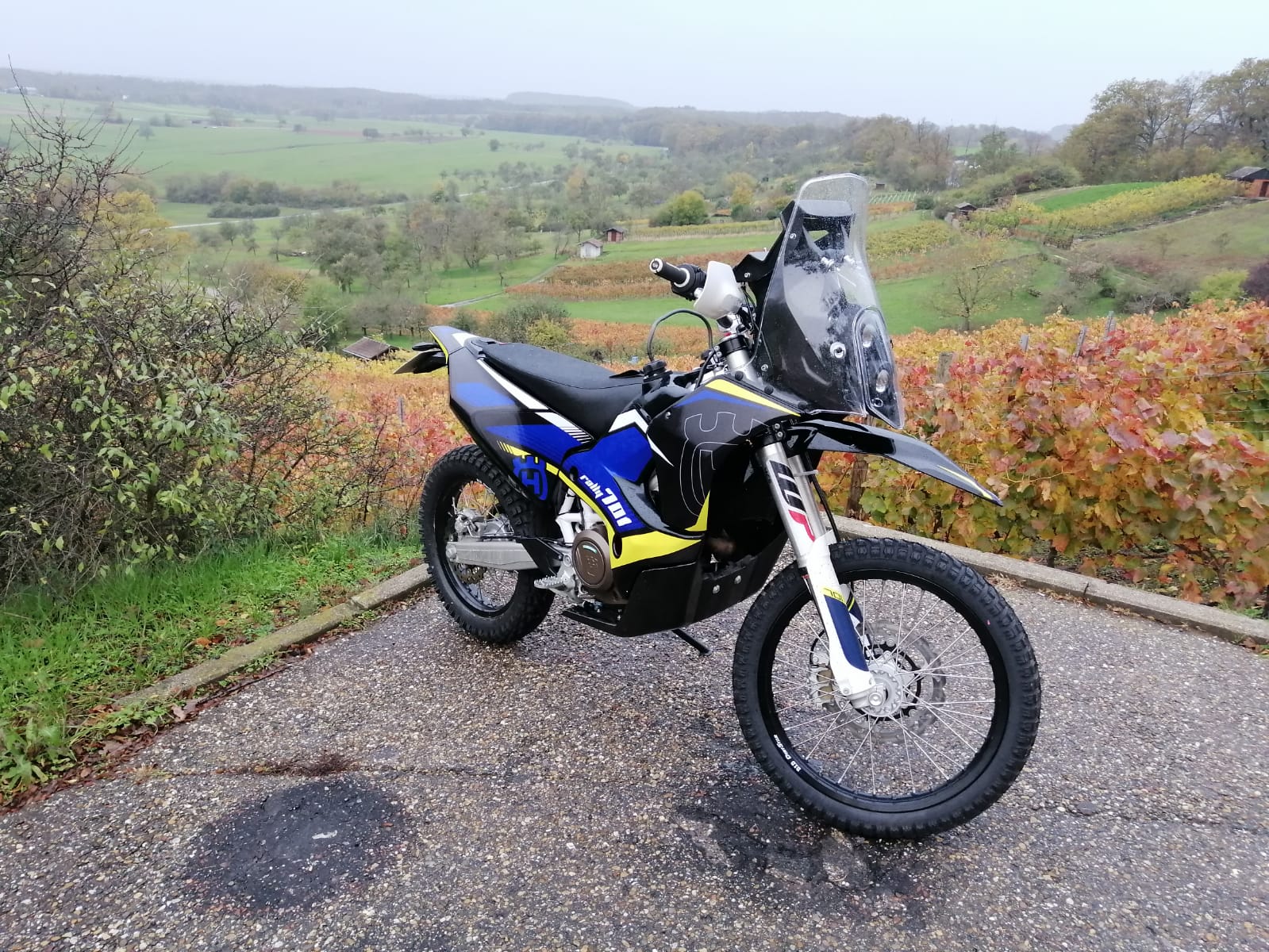

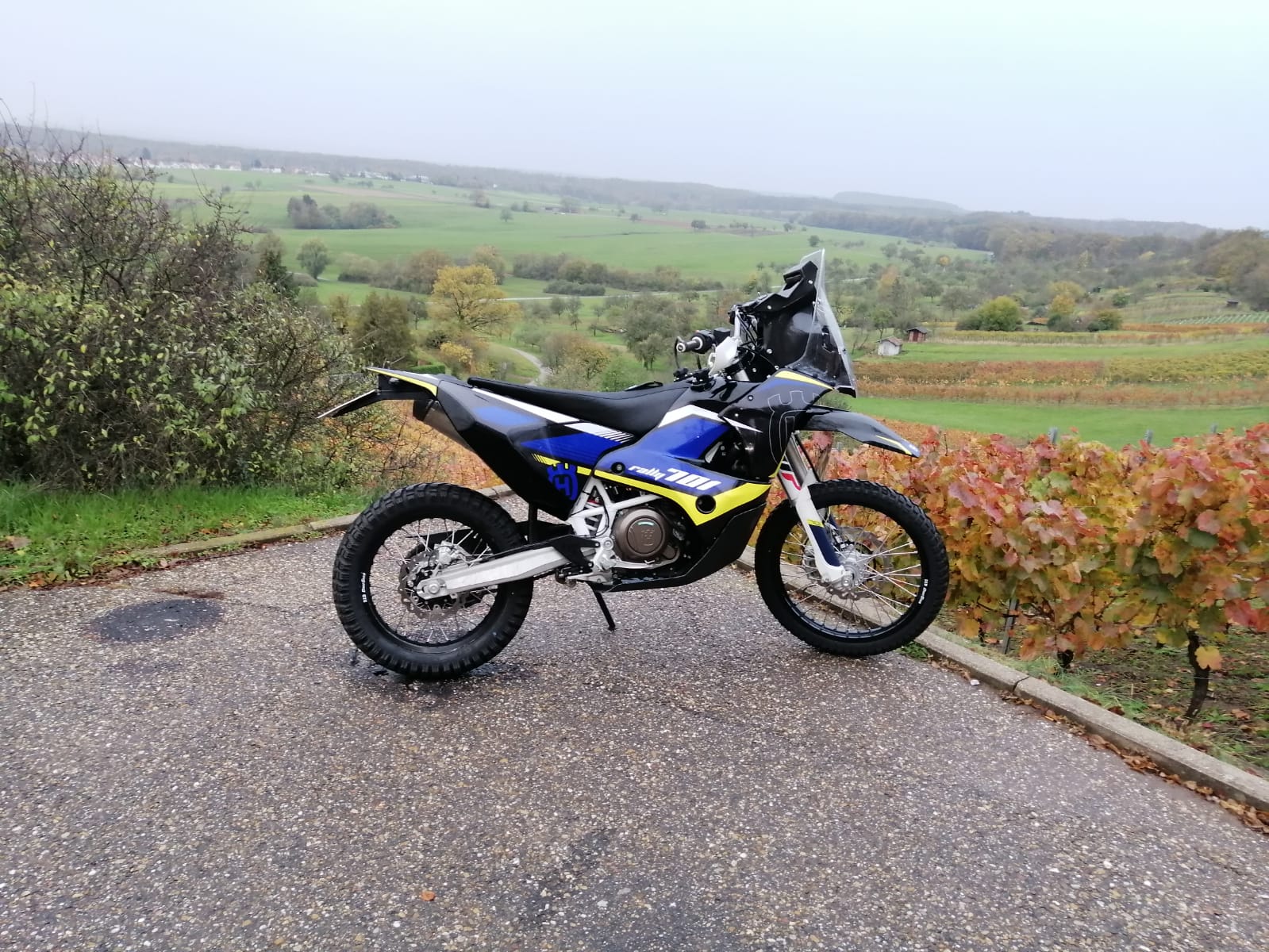

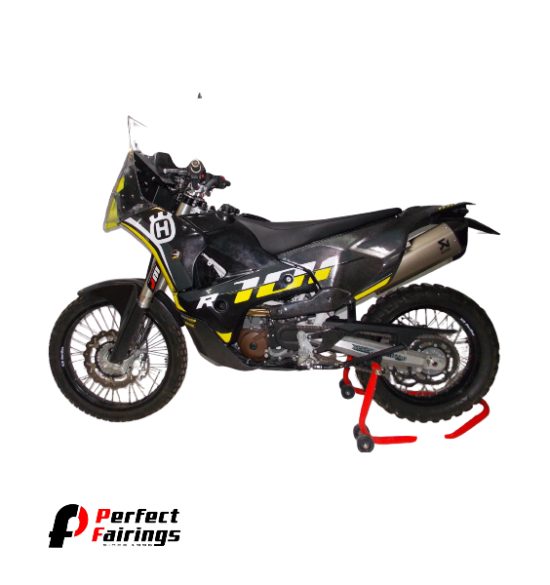

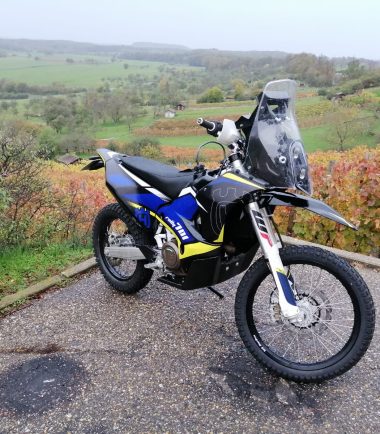

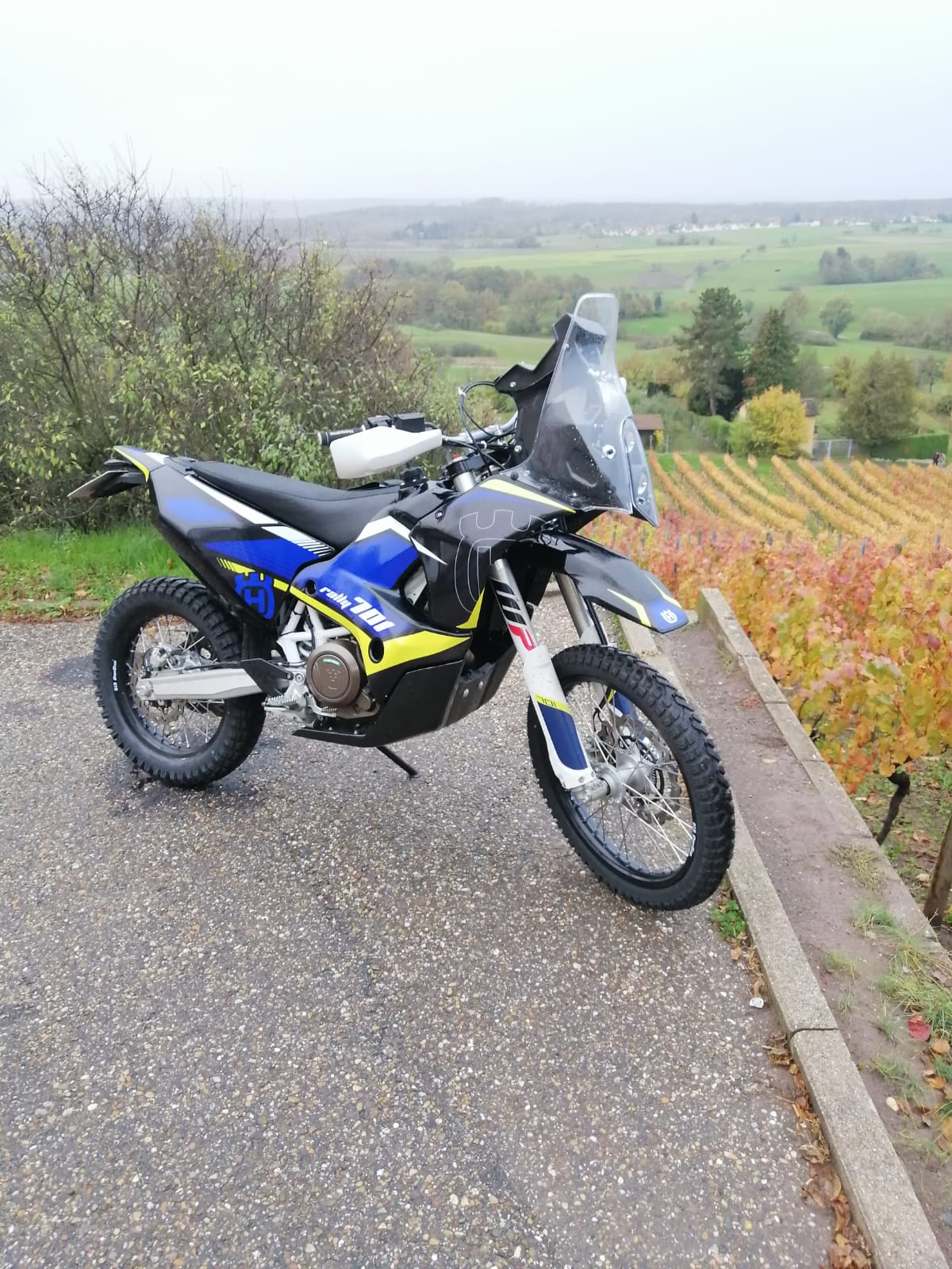

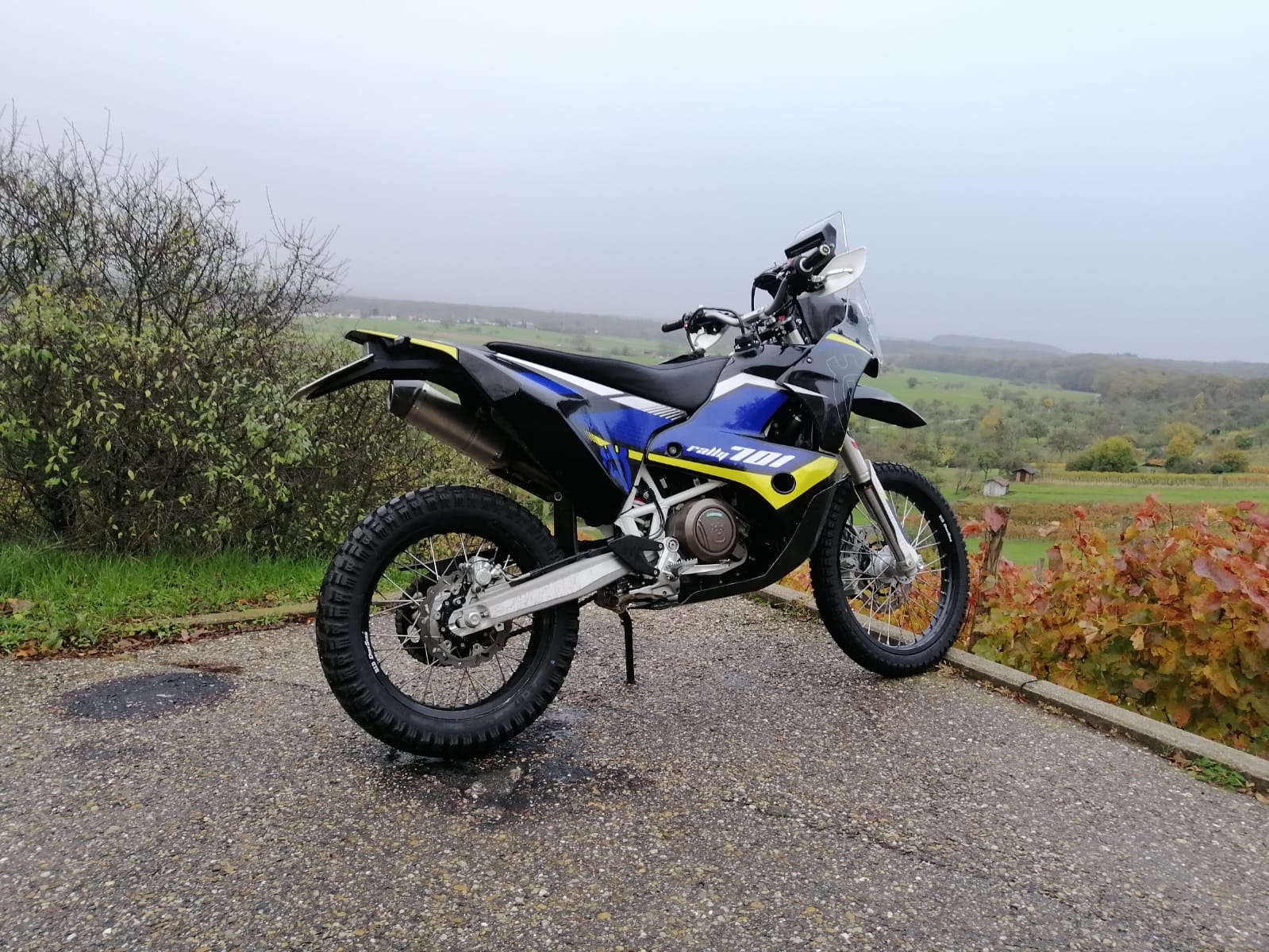

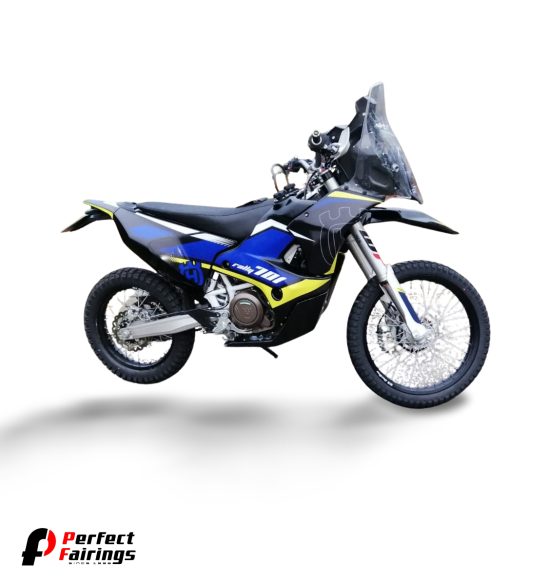

This kit is a complete kit ,real bolt on without any modifications on the bike and also you dont have to remove anything 🙂 .All parts remain on their original place .Standard exhaust works perfect and its compatible with the kit .
- OEM KTM Windshield
- OEM KTM Mask for headlights
- OEM KTM stoneguard for lights
- HELLA lights street legal
- Aluminium Navigation tower
- CNC machenied headstock bracket
- Fiberglass side panels
- 14L fuel tanks (7 per side)
- Keihin fuel pump in the front tanks
- Fuel hoses
- 2x One way valves
- Couplings
- Headlight wiring harness -plug and play
- Fuel pump wiring harness with 2 position switch and indicator ligh -plug and play
- Seat,comfort foam ,rally pocket in the front and the seat pan made of Carbon Kevlar
Details of the kit:
FUEL PUMP/FUEL HOSES:
The extra pump works with its own wiring harness which included in the kit .With this extra pump you will have the full access on which fuel tank will work first as it comes with a switch wich you choose if you will go with the front or the rear .Better balance on the fuels,the wiring harness includes an indicator which warning you when the front tanks runs out of fuel.
It comes with 2x one way valves to protect your fuel pumps from returning fuel .High quality fuel hoses reinforced ,couplings and connectors including .
ENGINE GUARD:
This kit includes a Carbon Fiber engine and fuel tanks protection with its brackets .
All the parts comes ready to mount and comes with instructions for an easy installation.
As extra you can add a CF toolbox ,extra cost 70 euro .Comes installed on the engine guard with its lid.

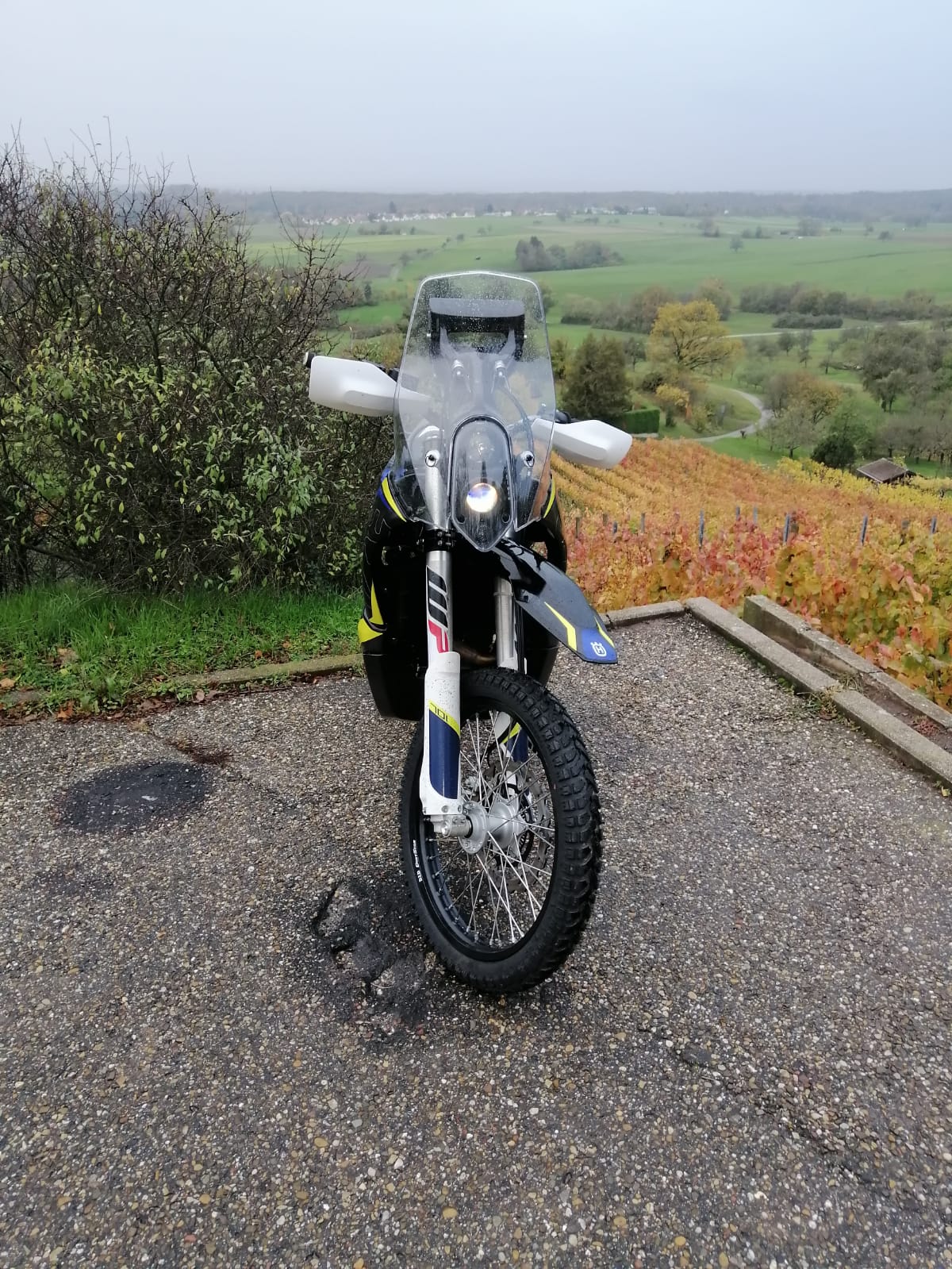

WINSHIELD ,OEM PARTS:

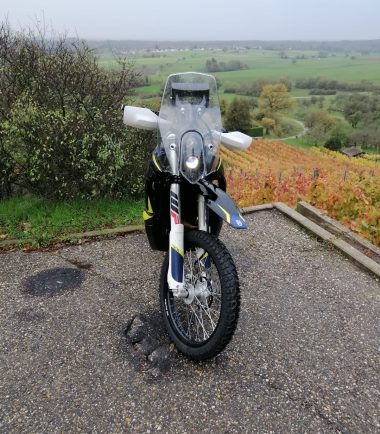

We use the OEM KTM DAKAR RALLY windshield ,headlight mask and stone guard protector for the lights .These parts comes direct from KTM ,they are tested for over 4 Dakar rallies and on the hardest rally raid condition arround the world.
NAVIGATION TOWER:
The navigation tower is made from aluminium and comes ready pre assembled .It comes with bracket for OEM speedo and you can add any GPS or other navigation equipment you have .It fits direct on the bike with the support bracket which comes with the navi tower.
Tower comes ready with pre installed headlight mask ,lights,lights stone guard .

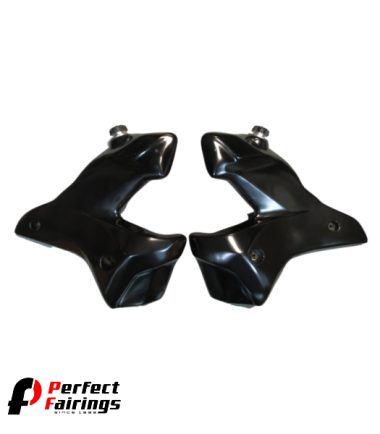

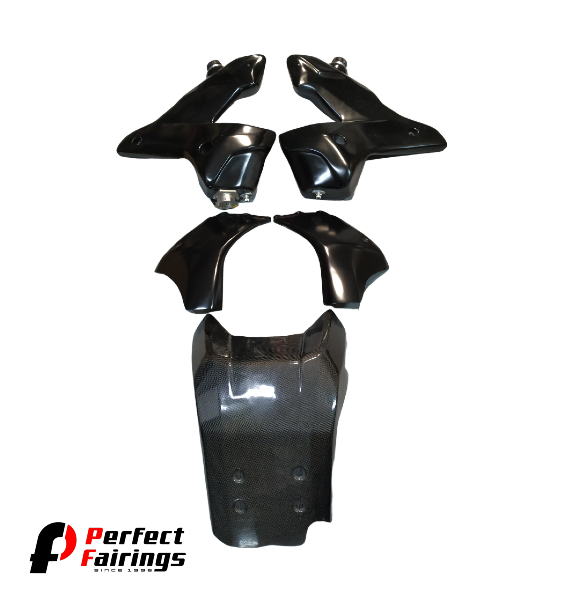

FUEL TANKS:
Our fuel tanks are made with Carbon Fiber ,multiple layers of mixed Carbon Fibers .Mixed Epoxy resins the best in the market and specially for fuel resist .Fuel tanks are reinforced inside with vinylester for extra protection on fuel resistance .
We use aluminium fillers , Acerbis fuel caps,KTM OEM rubber bashes,KTM OEM petcocks .
Fuel tanks comes painted white .Avaliable option to comes painted at any color you prefer (at an extra cost of 100 euro )
The design of our fuel tanks are made based on the OEM KTM Rally Dakar fuel tanks ,they have a direct fit which allow the stock exhaust and stock seat works perfectly .No need to cut anything from the bike frame in order to fit the tanks.
LIGHTING SYSTEM:
We choose to go with OEM lighting system ,as the Dakar bikes and also as many other Auto-Moto industies go .Hella lights Hi-Lo .Comes with plug and play hight quality wiring harness .
Lights details:
60mm High Beam Light
Features:
• Very versatile high beam lamp
• High performance in a compact design
• Exceptional performance and light distribution
Specifications:
• Voltage: 12V
• Beam Pattern: High Beam
• Light Source: HB3 / 9005 12V/65W Bulb (T3-1/4 12V/3W (W3W) Bulb)
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: (021) ECE/SAE (031) ECE
60mm Low beam light
Features:
• Very versatile low beam lamp
• High performance in a compact design
• Exceptional performance and light distribution
Specifications:
• Voltage: 12V
• Beam Pattern: Low Beam
• Light Source: HB3 / 9005 12V/65W Bulb
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: SAE (For Motorcycles only) / ECE
BRACKETS:
All our bracket systems are made in order to fit fast ,clean and without any special tool .Made from billet aluminium CNC machined .Our brackets are the meaning of plug and play products !
All parts comes ready ,painted ,drilled,finished ,with all their rubbers,screws,nuts and anything else you need to install them fast and easy ,
