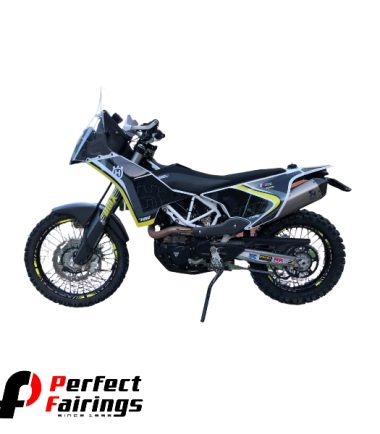

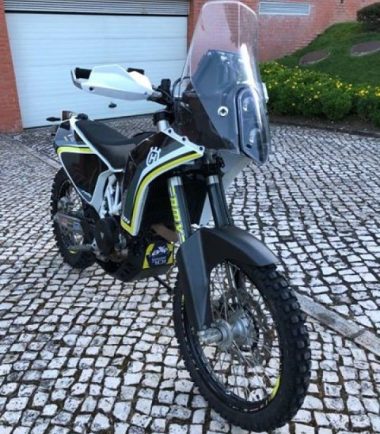

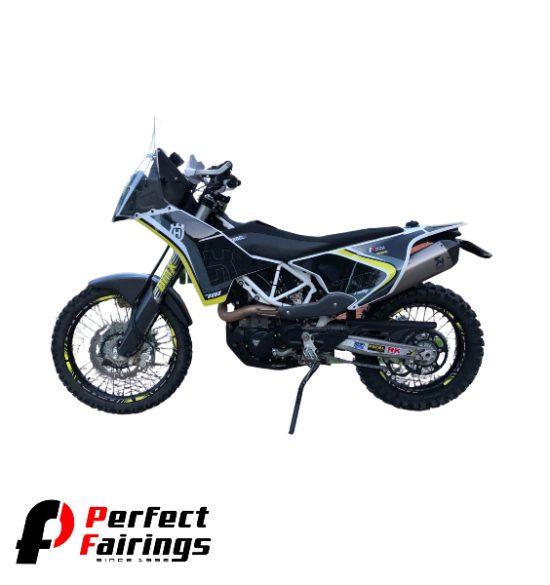

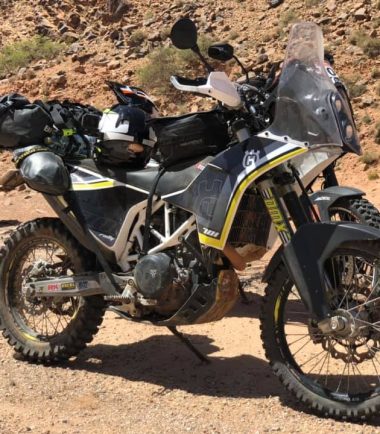

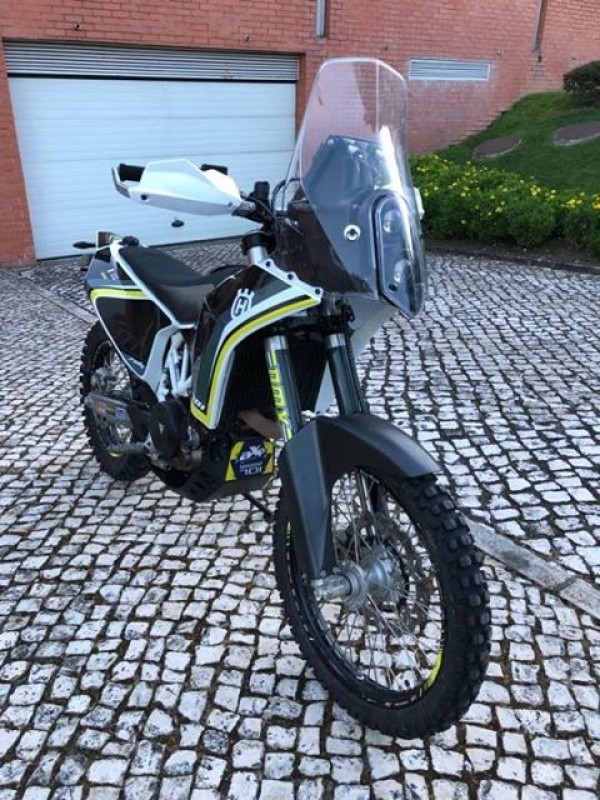

Husqvarna 701 Enduro Fairing KIT
This fairing kit comes ready to install it on your bike.
- Main headstock bracket is a bolt on billet CNC MACHINED bracket which DO NOT require weld – drill or glue in order to mount it .
- Side spoilers which comes with the kit are direct replacements of the stock side spoilers . Side spoilers are designed to fit direct on OEM mounting places like the standard side spoilers .Extra stong and durable .Highly tested from experienced rally raid riders.
- Navi tower is designed for OEM speedo and have a lot of free space to add your GPS or other equipment you like . Its made of Aluminium ,coatted black.Its very durable and comes pre assembled .
- Lighting sytem is street legal ,Hella brand .Same lights as on the KTM Rally bikes
- This kit use OEM KTM Windshield -headlight mask and stoneguard
*Grafix comes at an extra cost
**Lower fender comes at an extra cost

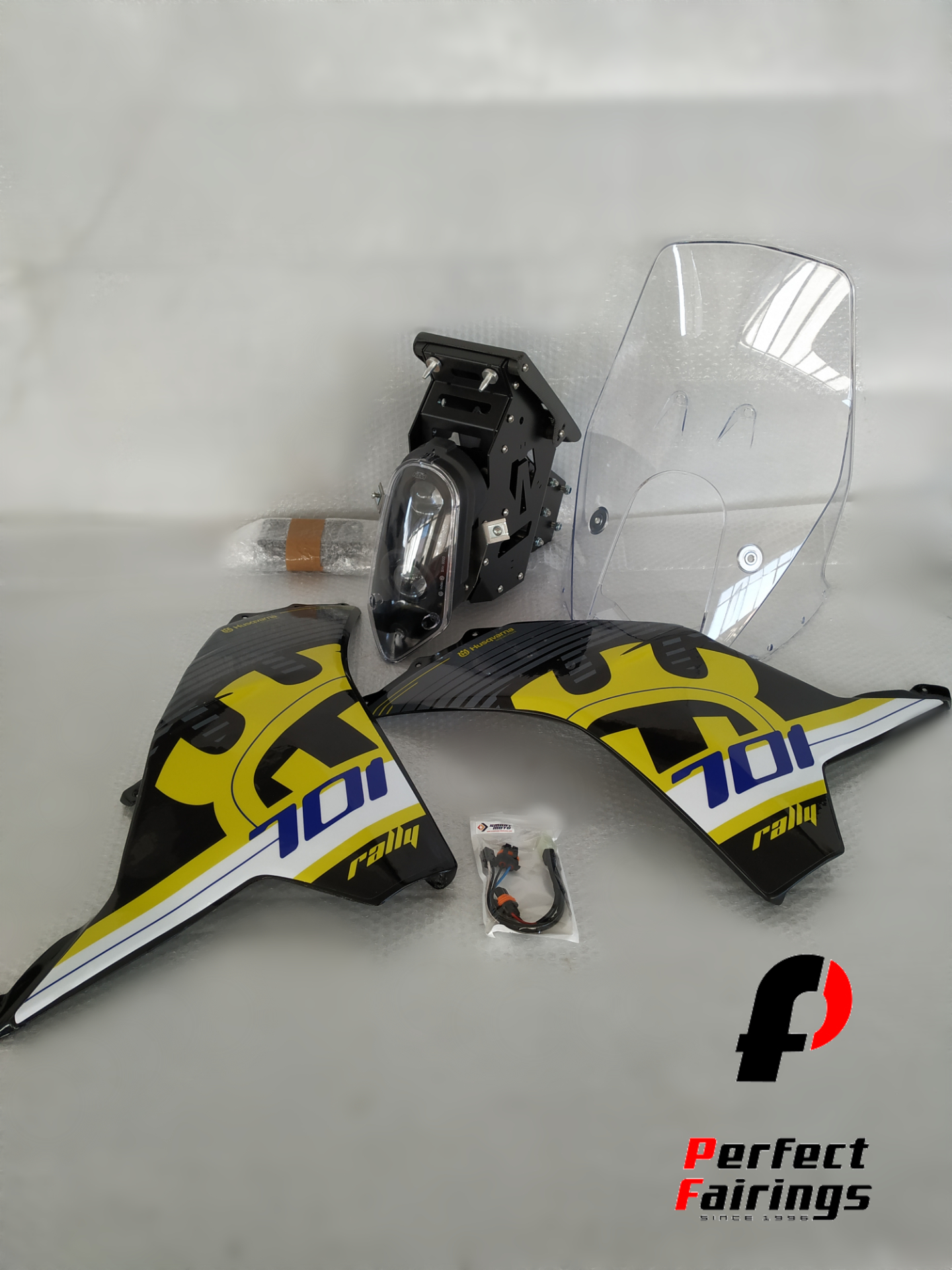

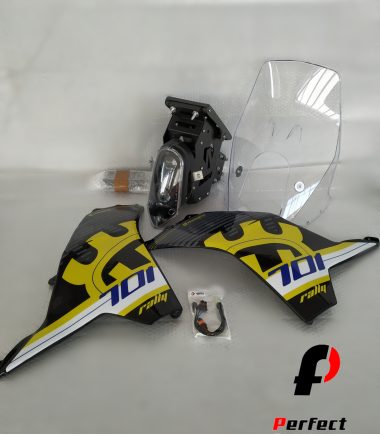

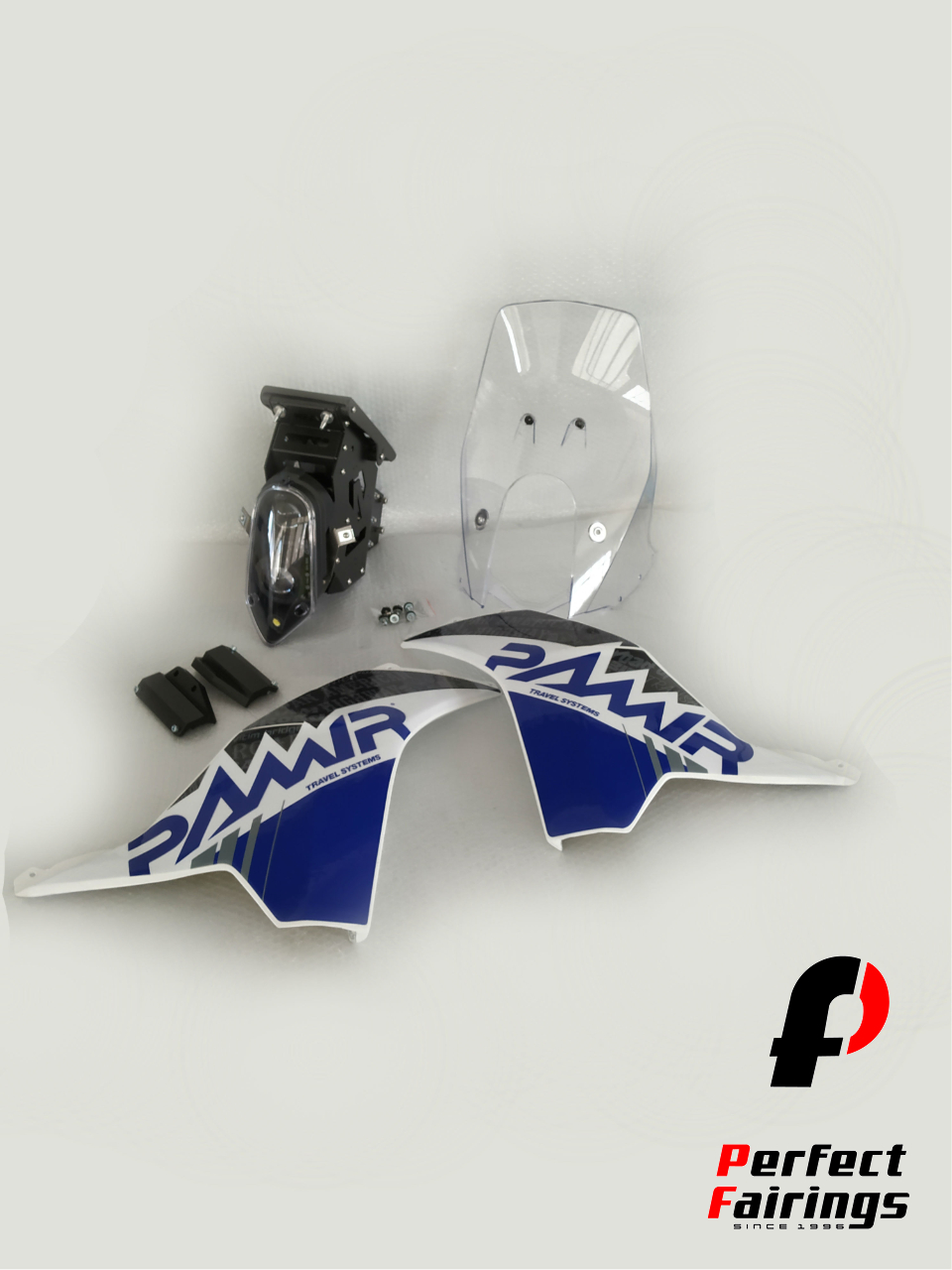

Part list of the kit :
- KTM OEM Windshield
- KTM OEM Headlight mask
- KTM OEM Stoneguard
- Hella lights Hi-Lo
- Plug and play wiring harness
- Position light
- Side spoilers
- Headstock CNC machined bracket
- Pre assembled Mastech Navigation Tower
WINSHIELD ,OEM PARTS:
We use the OEM KTM DAKAR RALLY windshield ,headlight mask and stone guard protector for the lights .These parts comes direct from KTM ,they are tested for over 4 Dakar rallies and on the hardest rally raid condition arround the world.

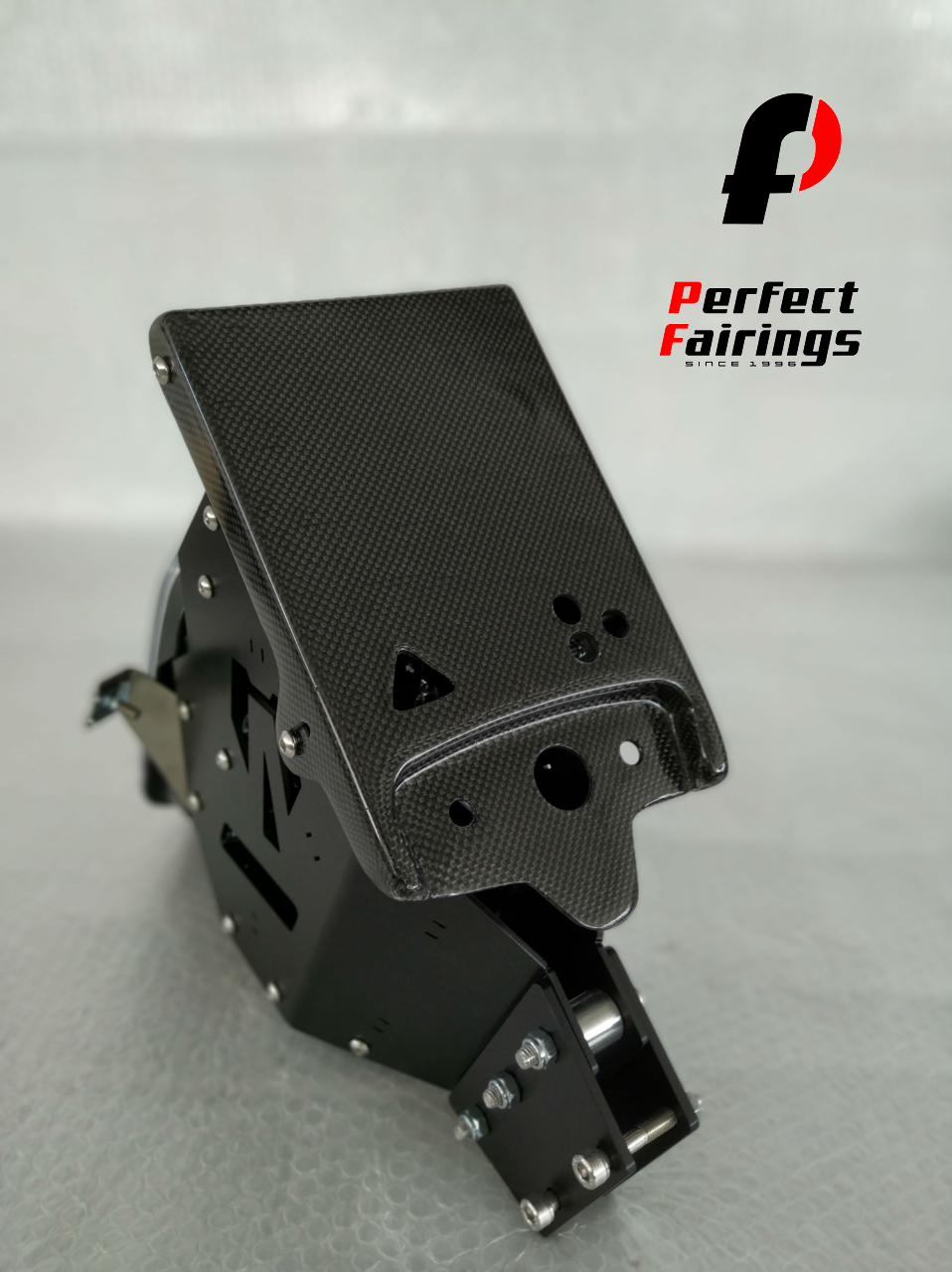

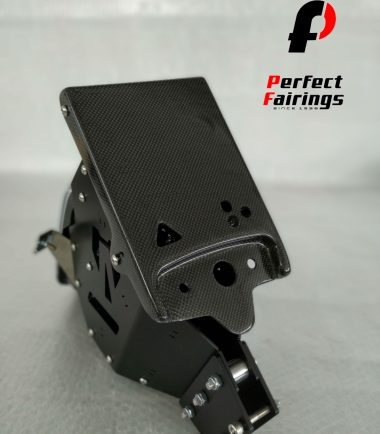

NAVIGATION TOWER:
The navigation tower is made from aluminium and comes ready pre assembled .It comes with bracket for OEM speedo and you can add any GPS or other navigation equipment you have .It fits direct on the bike with the support bracket which comes with the navi tower.
Tower comes ready with pre installed headlight mask ,lights,lights stone guard .
LIGHTING SYSTEM:
We choose to go with OEM lighting system ,as the Dakar bikes and also as many other Auto-Moto industies go .Hella lights Hi-Lo .Comes with plug and play hight quality wiring harness .
Lights details:
60mm High Beam Light
Features:
• Very versatile high beam lamp
• High performance in a compact design
• Exceptional performance and light distribution
Specifications:
• Voltage: 12V
• Beam Pattern: High Beam
• Light Source: HB3 / 9005 12V/65W Bulb (T3-1/4 12V/3W (W3W) Bulb)
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: (021) ECE/SAE (031) ECE
60mm Low beam light
Features:
• Very versatile low beam lamp
• High performance in a compact design
• Exceptional performance and light distribution
Specifications:
• Voltage: 12V
• Beam Pattern: Low Beam
• Light Source: HB3 / 9005 12V/65W Bulb
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: SAE (For Motorcycles only) / ECE
SIDE PANELS:
Side panels are direct replacements of the OEM panels,comes ready to mount .Mount direct on standard mounting points and no need to relocate anything .
- Hight quality woven fiberglass
- High quality polyester resins
- Painted with Automotive paint ,ready to use . White color*
- Carbon Fiber/Kevlar reinforcement on mounting points for extra strenght
- Pre drilled
*For other colors please specify color ,if possible RAL code .Additional Charge 50 euro
