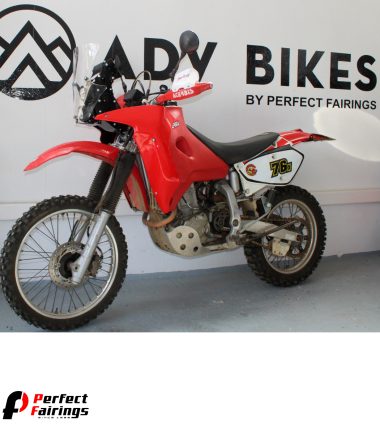

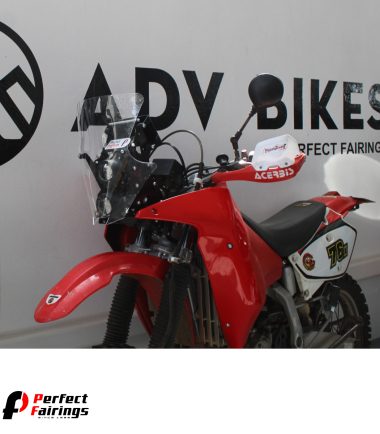

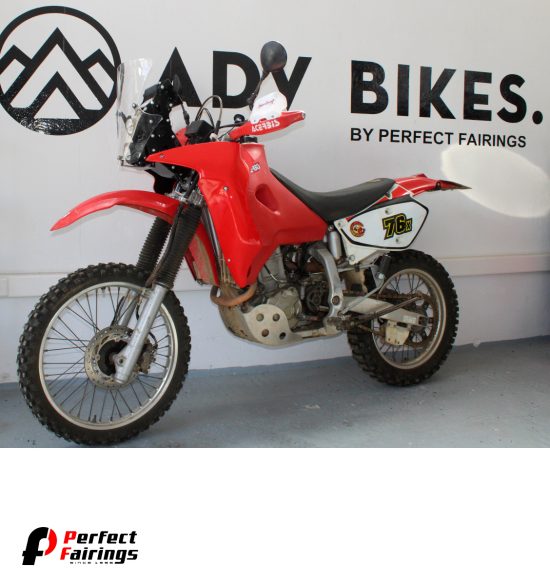

HONDA XR650R

RALLY FAIRING GEN2

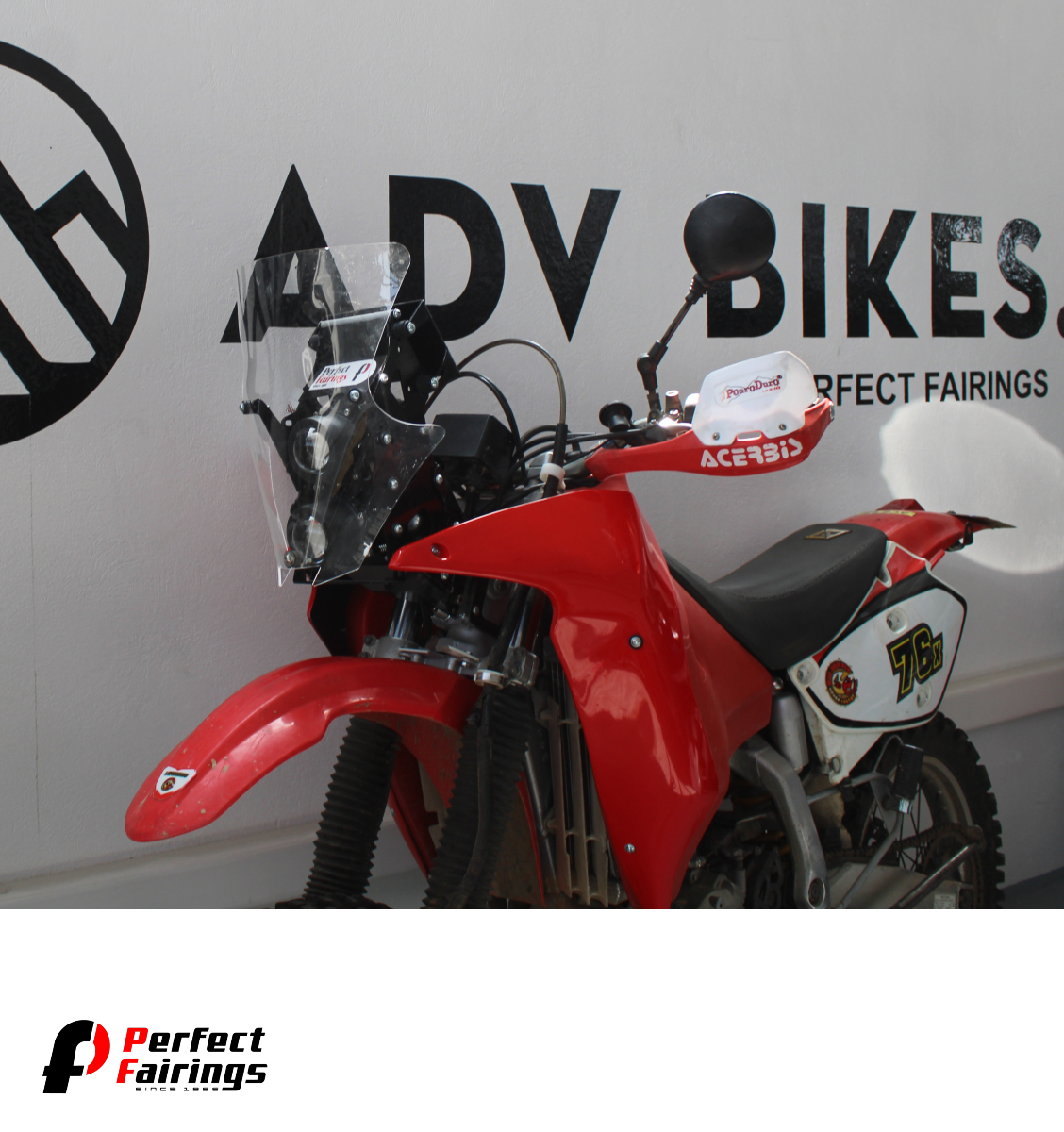

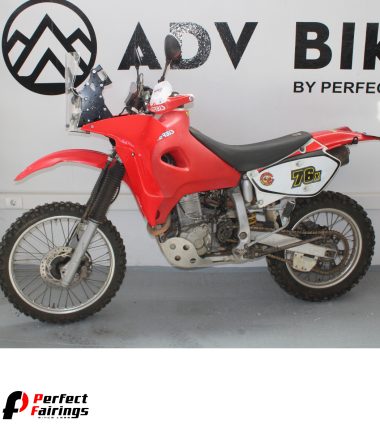

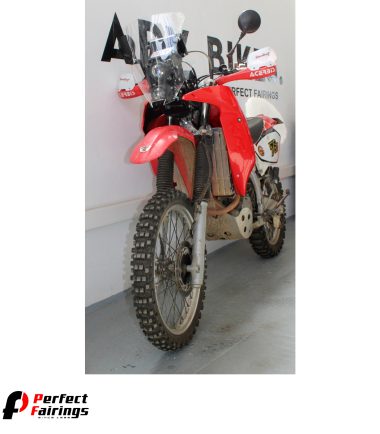

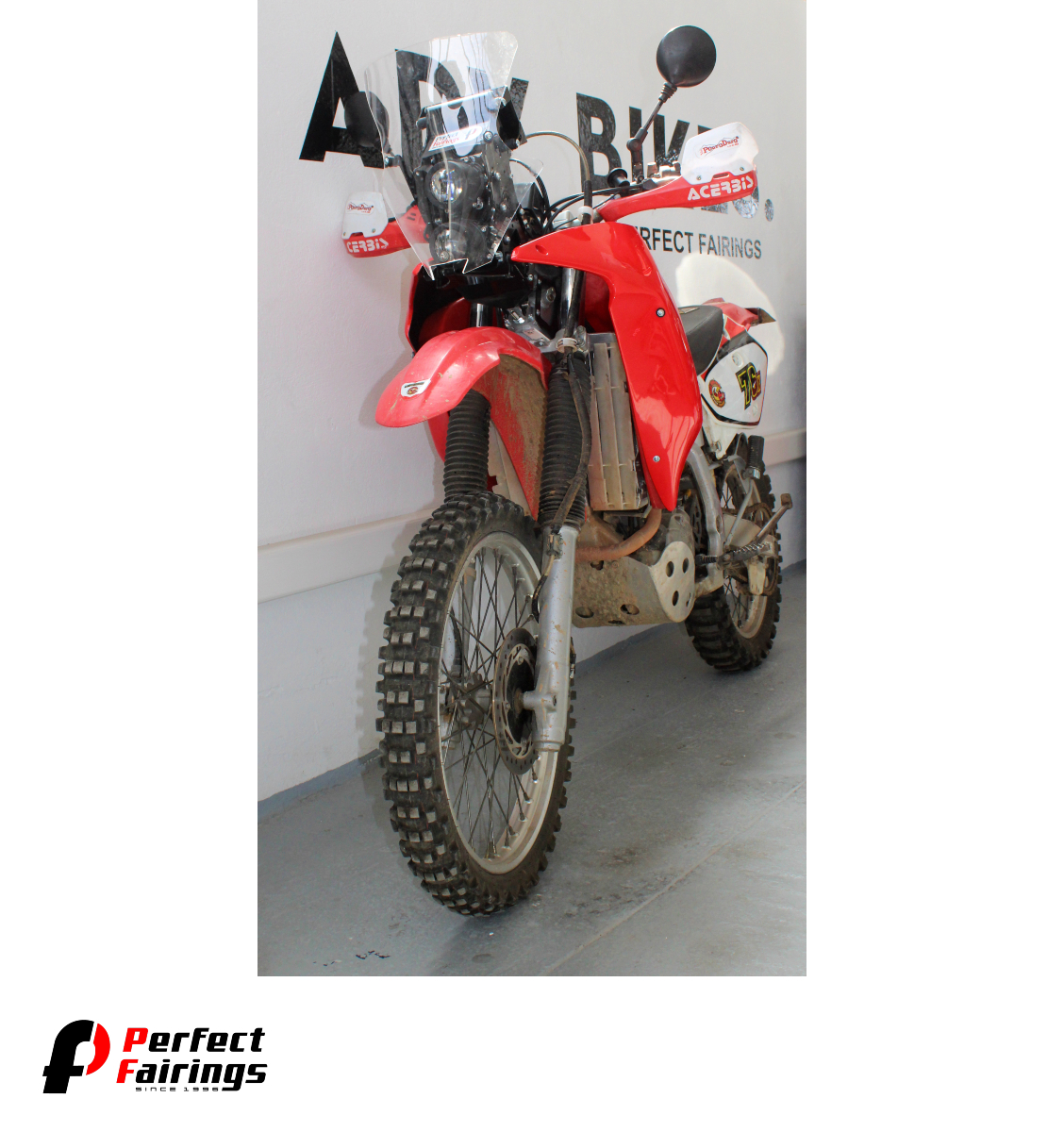

Our popular Rally kit for the might HONDA XR650R now updated to a GEN2 version (Kenaroo Version is still available ) .What we did on the new version ? Many many great updated :

• Bigger Navigation tower
• GPS (Mobile phone- Tablet etc ) plate which you can easily use to add your holder for GPS or any other equipment you like
• Clear screen , designed in 2 heights (Rally and Turing)
• New side panels , based on the Rally CRF 450 Bike

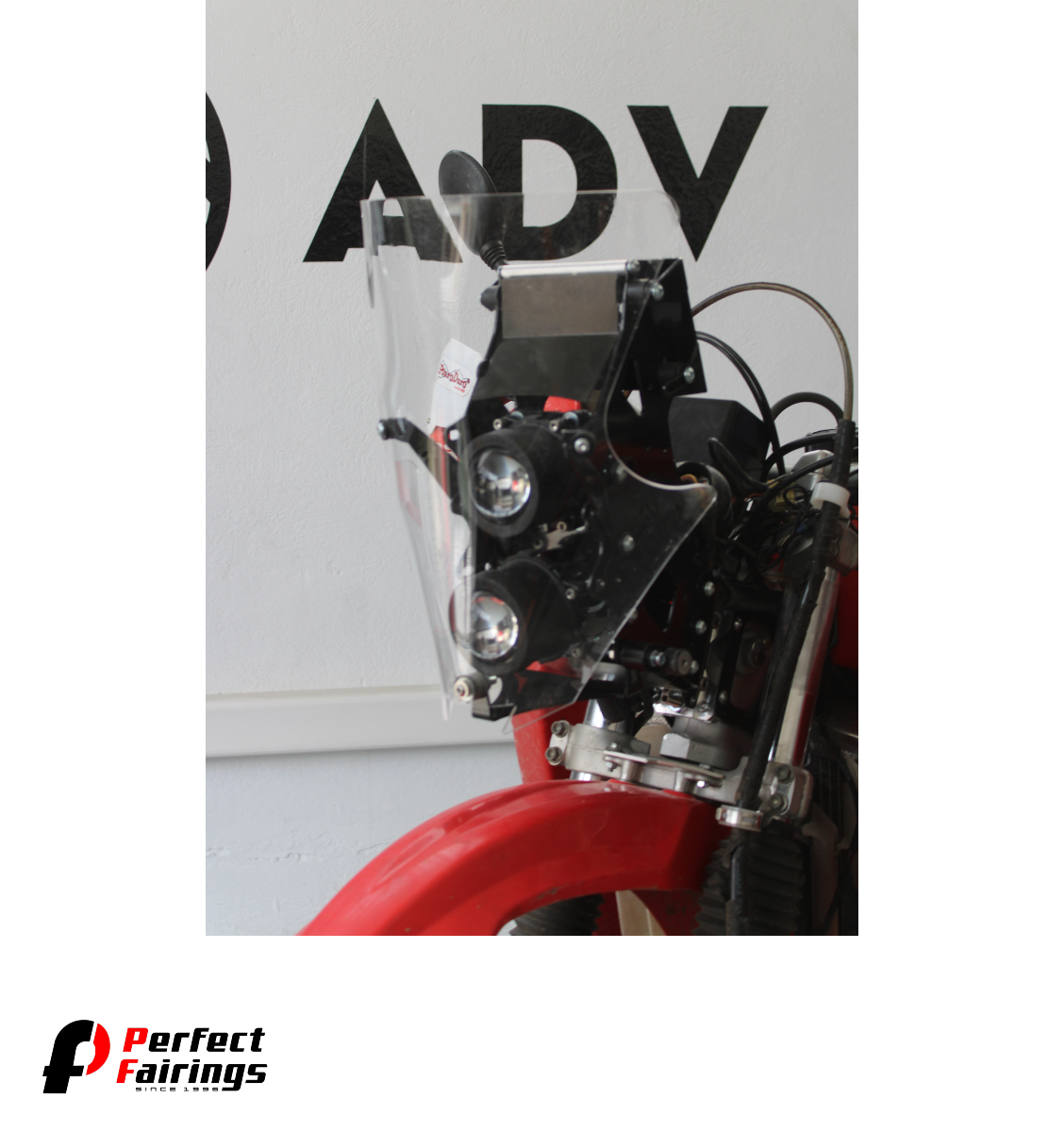

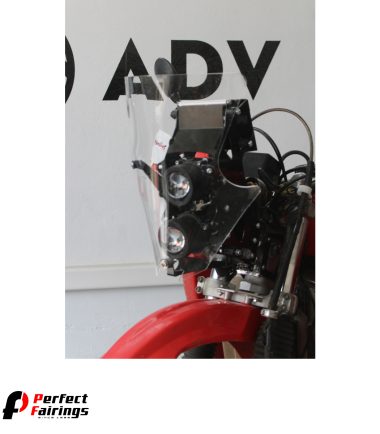

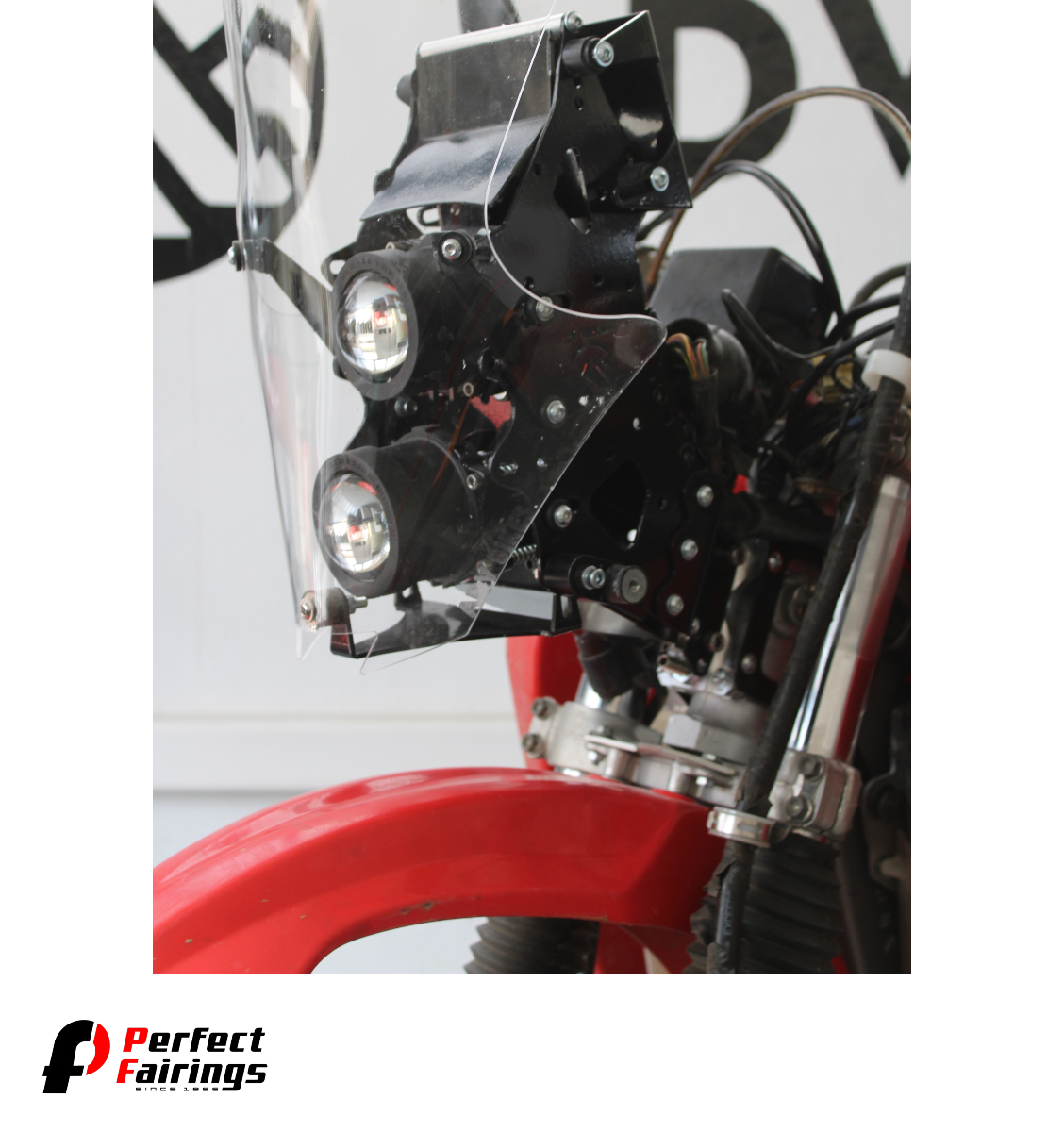

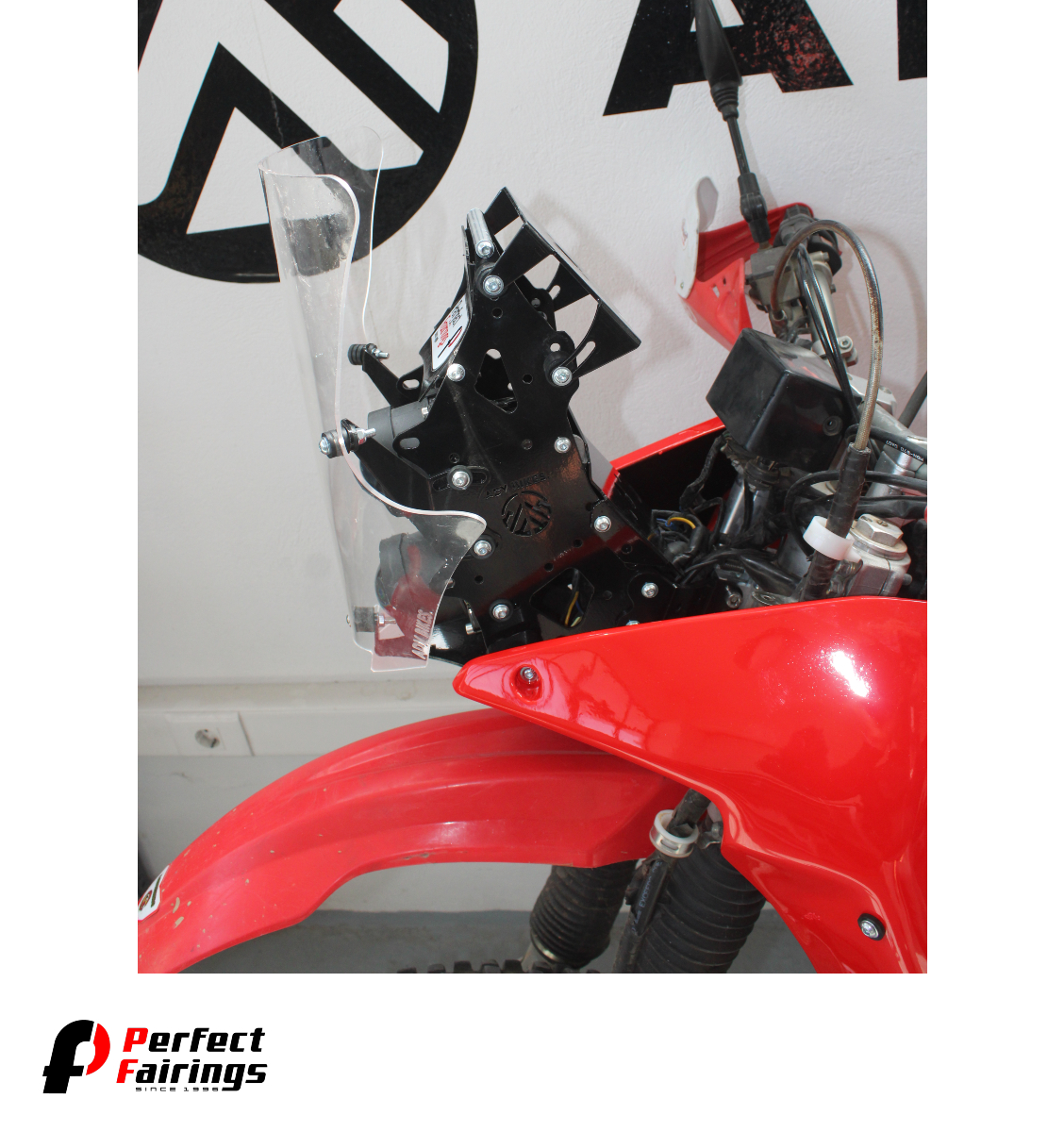

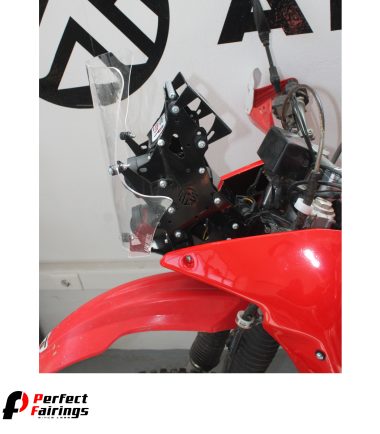

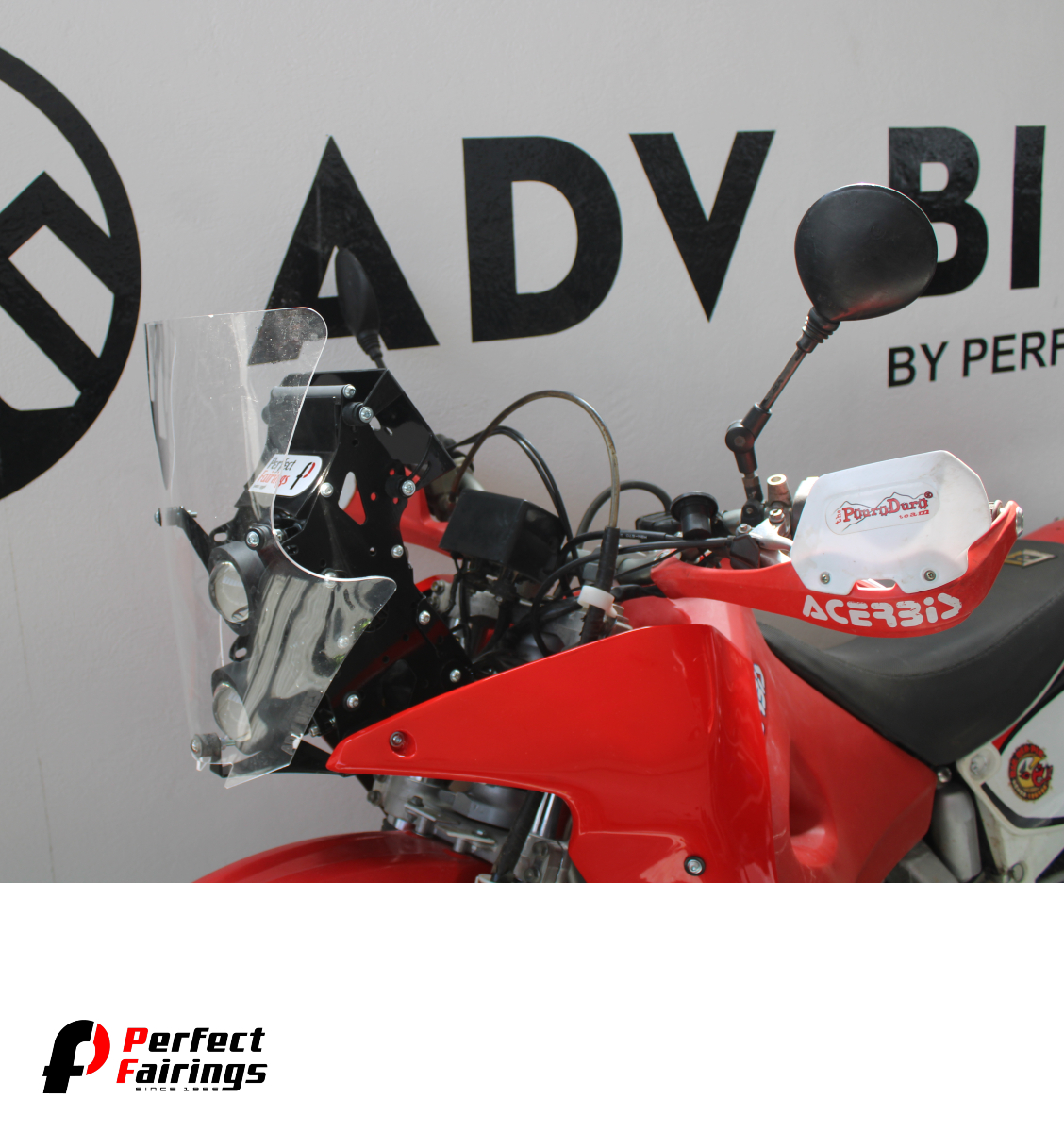

Navigation tower :

• Made of aluminium
• Easy to assemble (comes ready pre assembled)
• 2 positions for the headlights to match the riders preferences
• Adjustable headlight bracket
• GPS plate
• Clear screen holders
• Side panels brackets with anti vibration holders

Side panels :

• Strong
• Light weight
• Made of high quality roving fiberglass (not cheap MATT glass fiber)
• White gel coat finish
• Easy to paint (sand-prime-paint) with any automotive paint system
• Easy to repair in case of hard crash
• These panels also provide extra protection on your Acerbis Sahara fuel tank
• Direct fit on the Acerbis Sahara Fuel tank

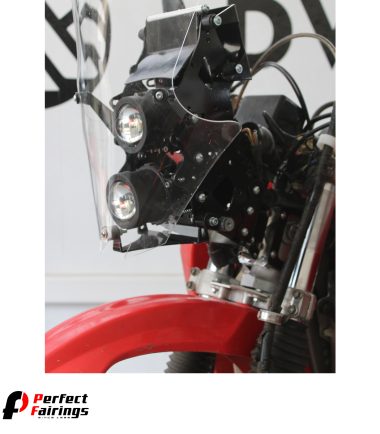

-Headlight kit (Standard option)

This kit comes with 2 HELLA lights and a universal wiring harness , both lights are street legal . Comes ready mounted on an aluminium bracket

HONDA XR650R HELLA LIGHTS :

SPECS:

60mm High Beam

Ideal for:
• Retrofit
• Motorcycles

1. Features:
   • Very versatile high beam lamp
   • High performance in a compact design
   • Exceptional performance and light distribution
2. • Voltage: 12V
   • Beam Pattern: High Beam
   • Light Source: HB3 / 9005 12V/65W Bulb (T3-1/4 12V/3W (W3W) Bulb)
   • Power Consumption: 65W
   • Housing Material: Plastic
   • Optics: Lens
   • Lens Material: Glass
   • Connection: Bulb Plug
   • Approval: (021) ECE/SAE (031) ECE

Mounting:
• Flush

Single Lamp Includes:
• (1) Lamp
• (1) Halogen Bulb

60mm Low beam:

Ideal for:
• Motorcycles

Mounting:
• Flush

Single Lamp Includes:
• (1) Lamp
• (1) Halogen Bulb

Hella LED lights , street legal (OPTIONALLY)

Technical data:
Operating voltage/ Rated voltage 12 V Light source type LED
Power consumption 16 W
Colour temperature 6000 K
Protection class IP 6K9K and IP 6K7
Type approval ECE, FMVSS108
Housing Aluminum die cast Protection Overheating and reverse polarity protection Connection TYCO connector (HB3)
Lens material Glass
Manufactured in Austria
Weight 278 g

Wiring harness :

• Plug and play
• Following ISO and OEM rules

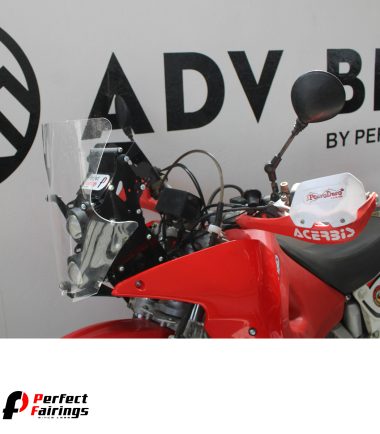

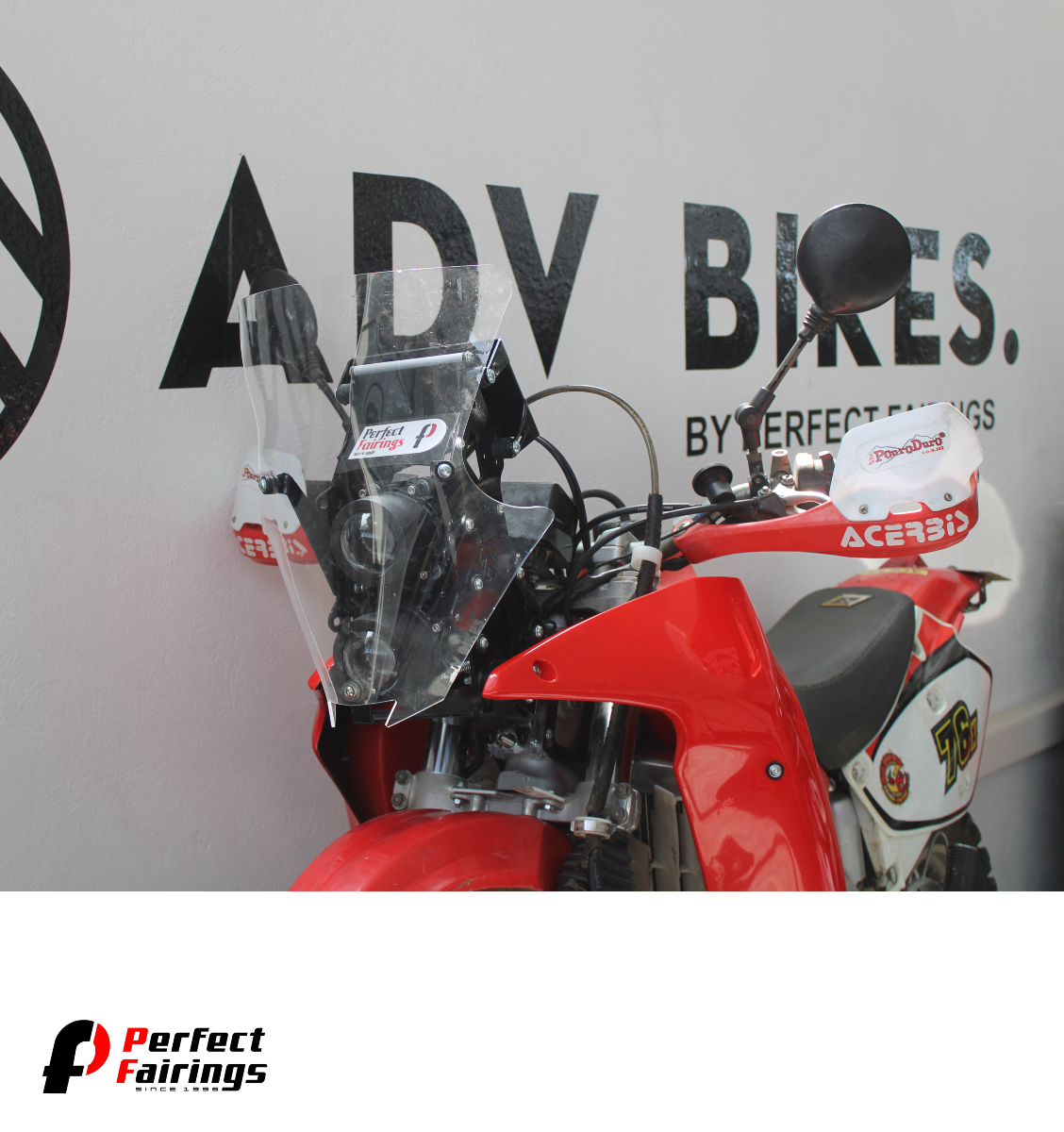

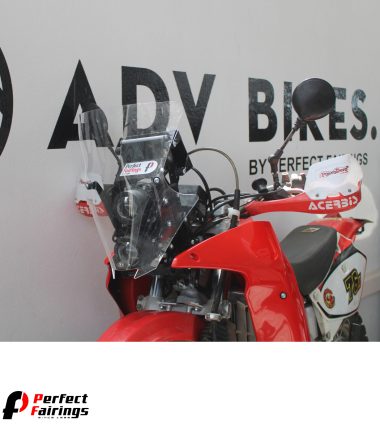

Clear screen :

• 4mm PMMA material
• Clear only
• Made on a latest technology Vaccum machine and cutted by CNC machine

Headstock bracket Plag n Play :

This is a unique part !! Made from aluninium in laest technology CNC milling machines ,fits easy on the bike and with the smart design you can easily mount it. This will allow you to mount your navigation tower without drill – weld or glow any extra part on your bike and you can bring it back to stock bike anytime !
