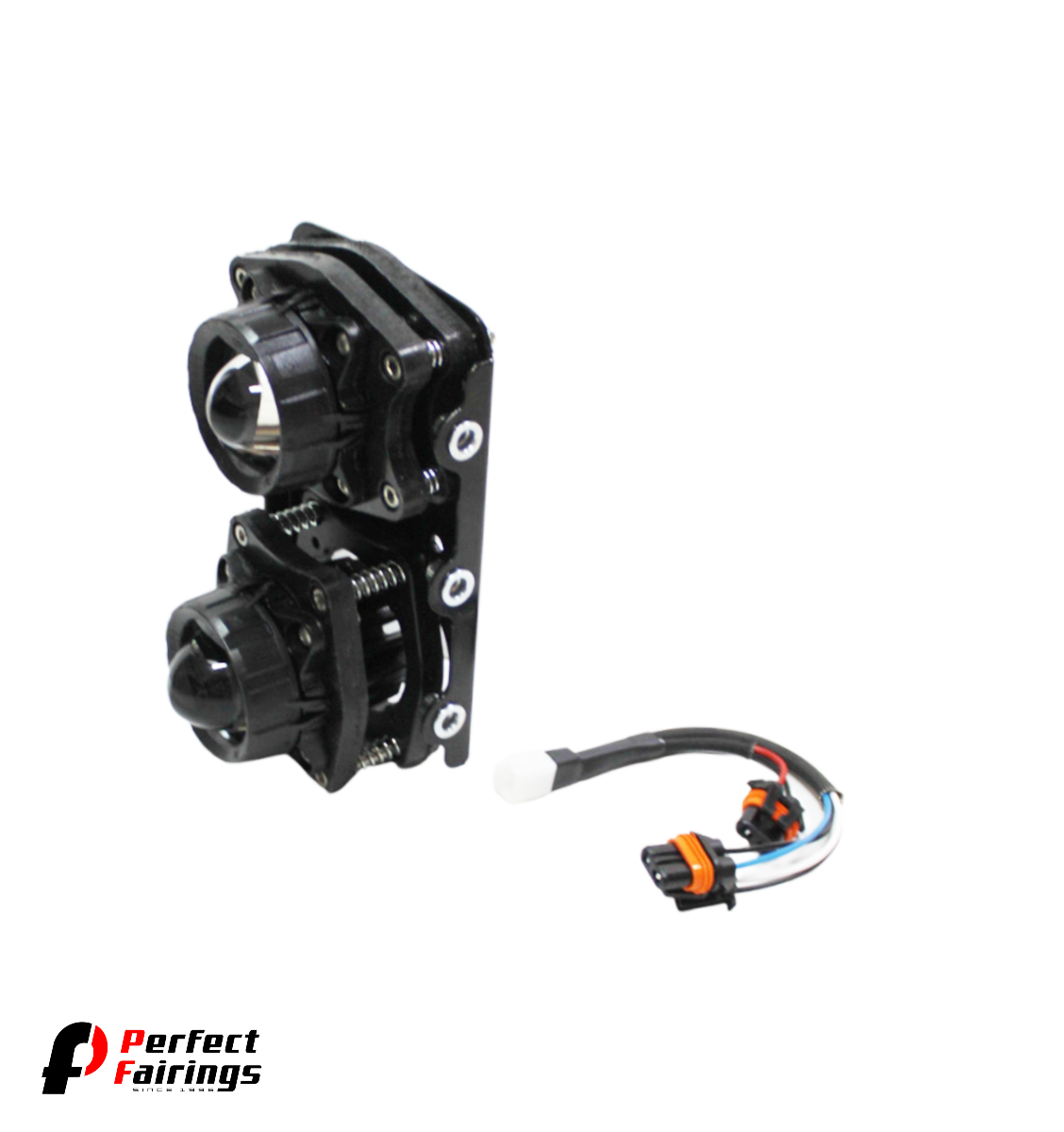

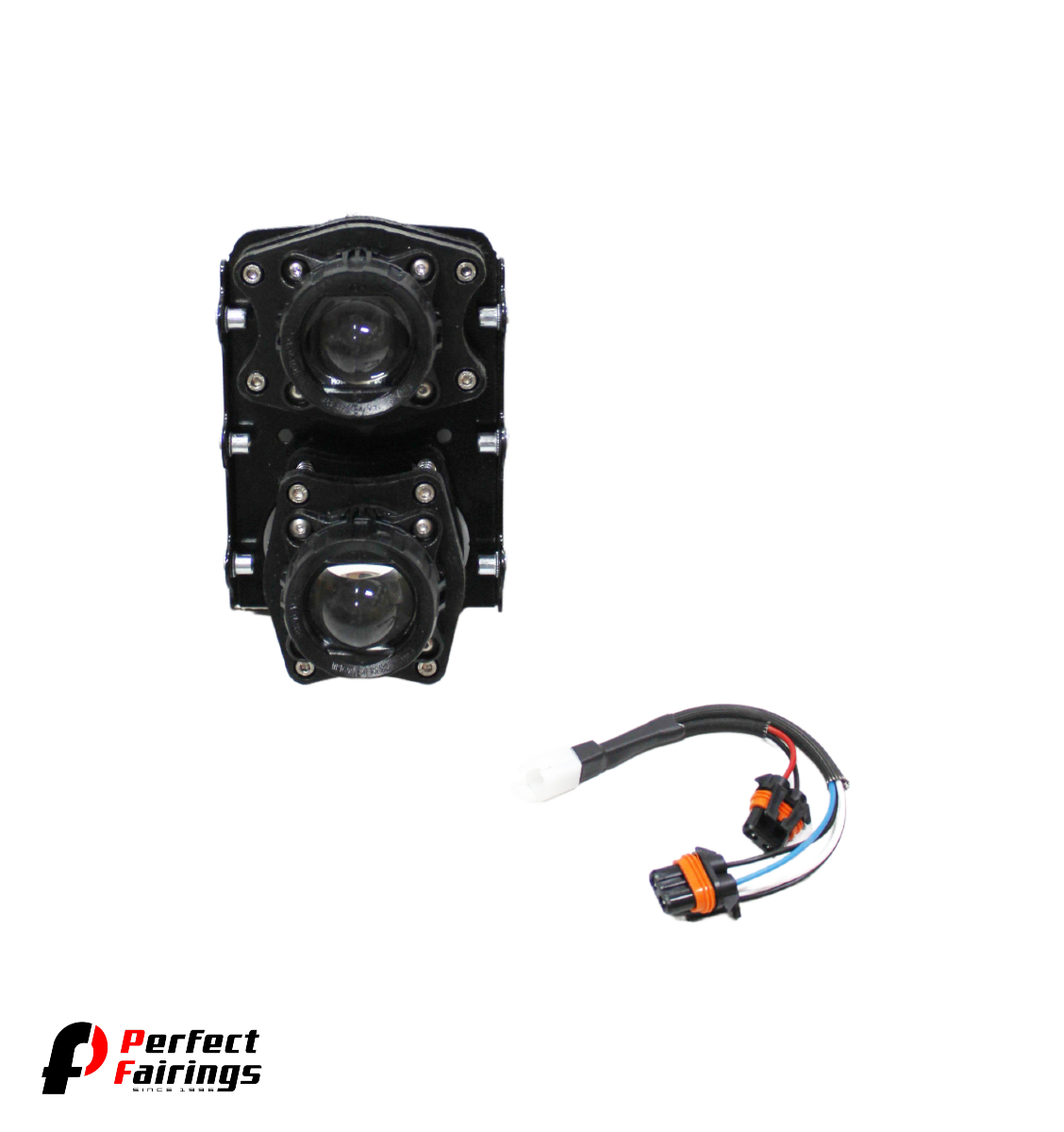

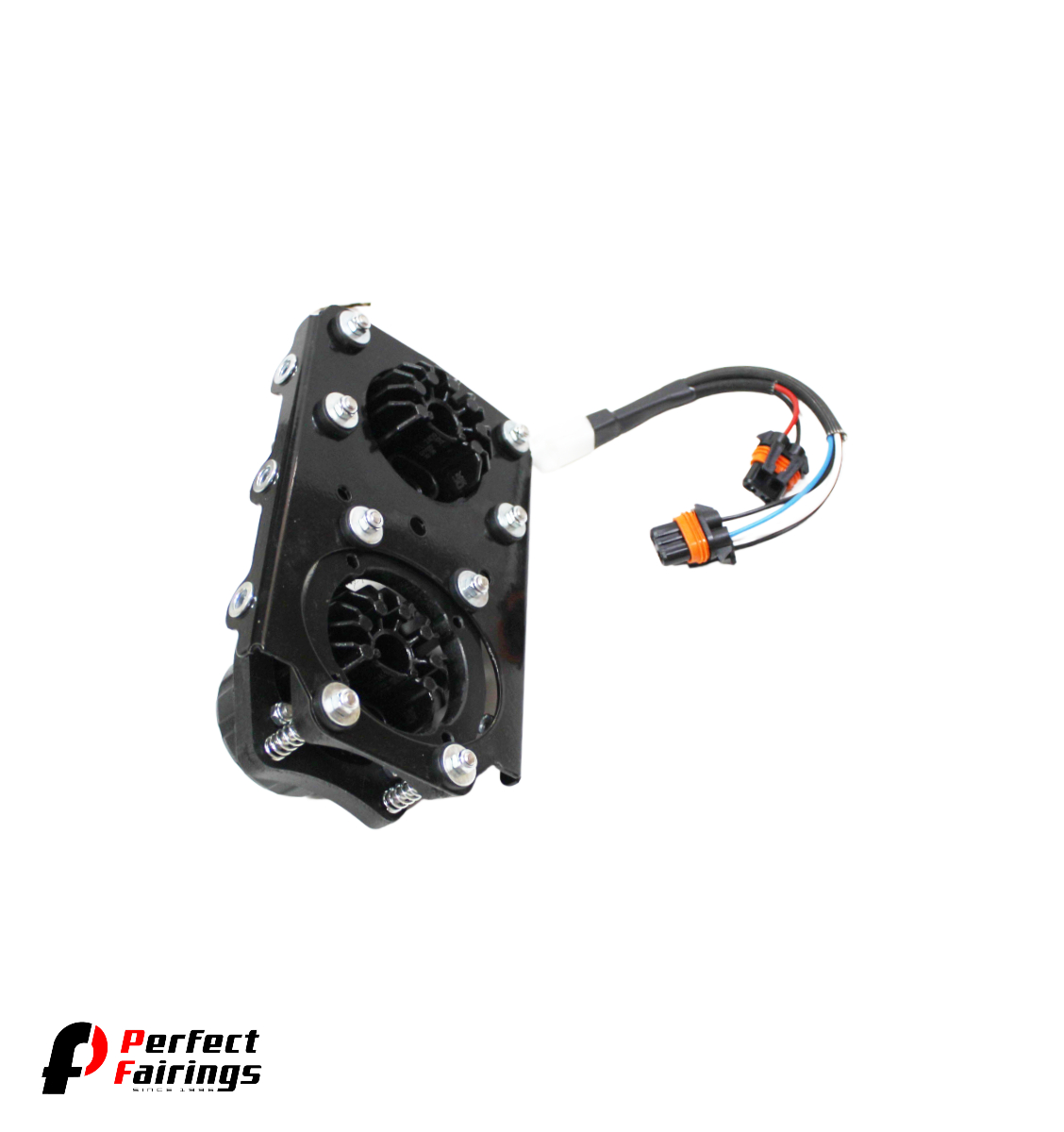

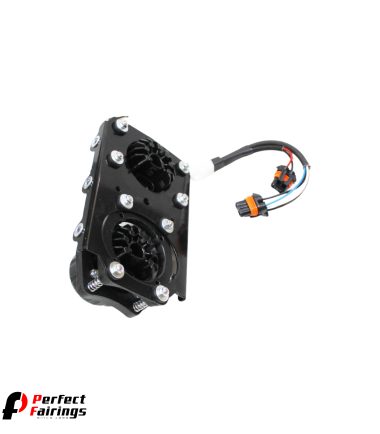

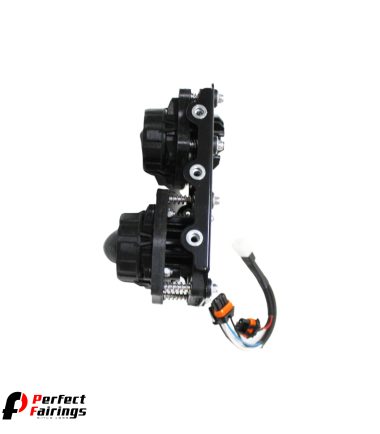

HELLA LED LIGHTS
Module 60 LED
1.Particularly compact LED headlamp series
2. Specially developed lens system for homogeneous illumination
3. Enables easy conversion from halogen to LED technology
PRODUCT FEATURES :
Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA’s compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water.
A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.
Technical data:
Operating voltage/ Rated voltage 12 V Light source type LED
Power consumption 16 W
Colour temperature 6000 K
Protection class IP 6K9K and IP 6K7
Type approval ECE, FMVSS108
Housing Aluminum die cast Protection Overheating and reverse polarity protection Connection TYCO connector (HB3)
Lens material Glass
Manufactured in Austria
Weight 278 g
Including:

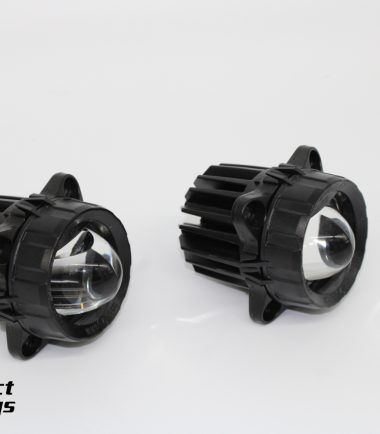

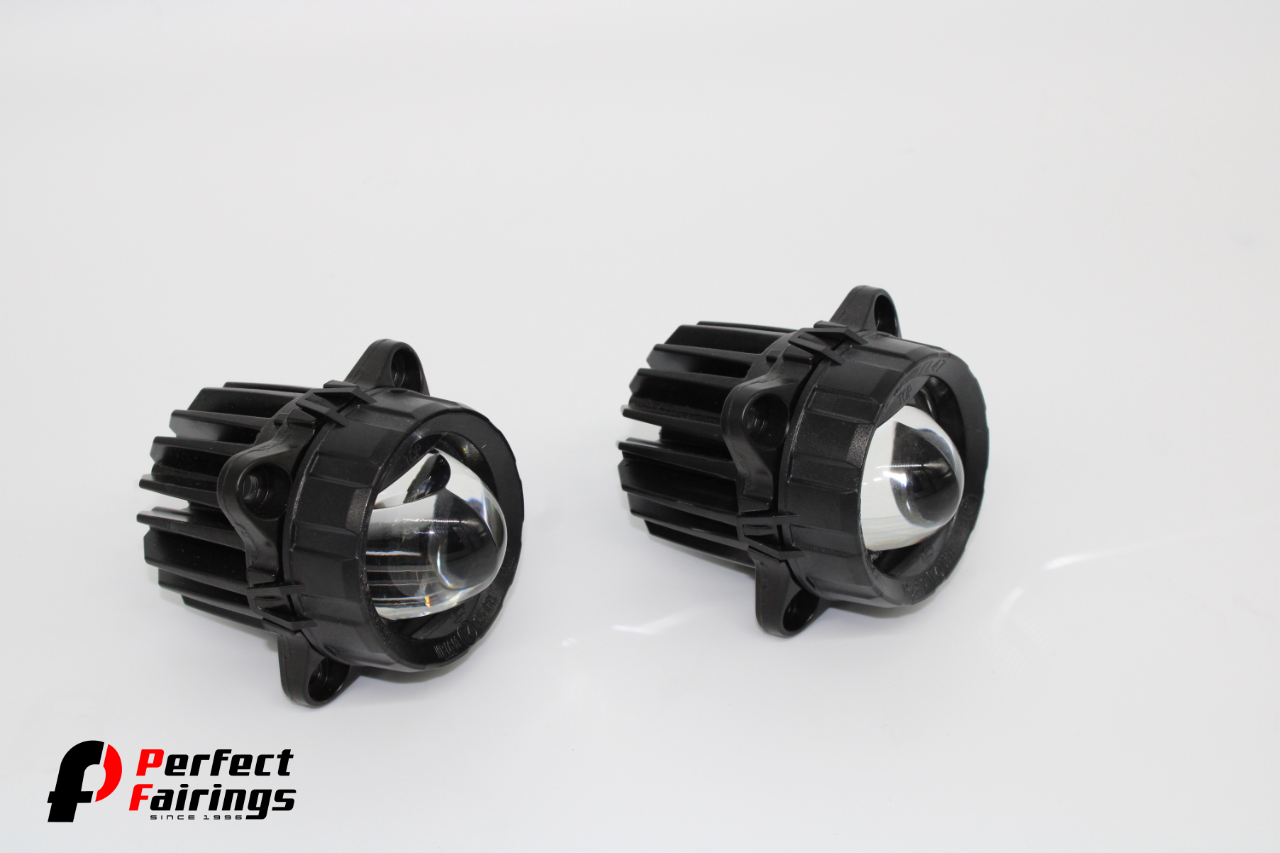

Hi beam LED LIGHT
Lo beam LED LIGHT
KTM OEM PART NUMBER :
# 76714001000 – Low beam
# 76714002000 – High beam
STREET LEGAL LIGHTS , ASK US FOR HOMOLOGATION PAPERS IF YOU NEED THEM

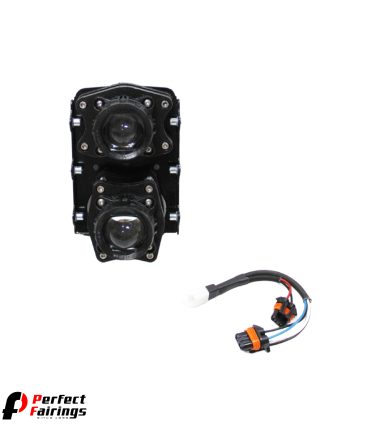

EXTRA PARTS hella LED lights

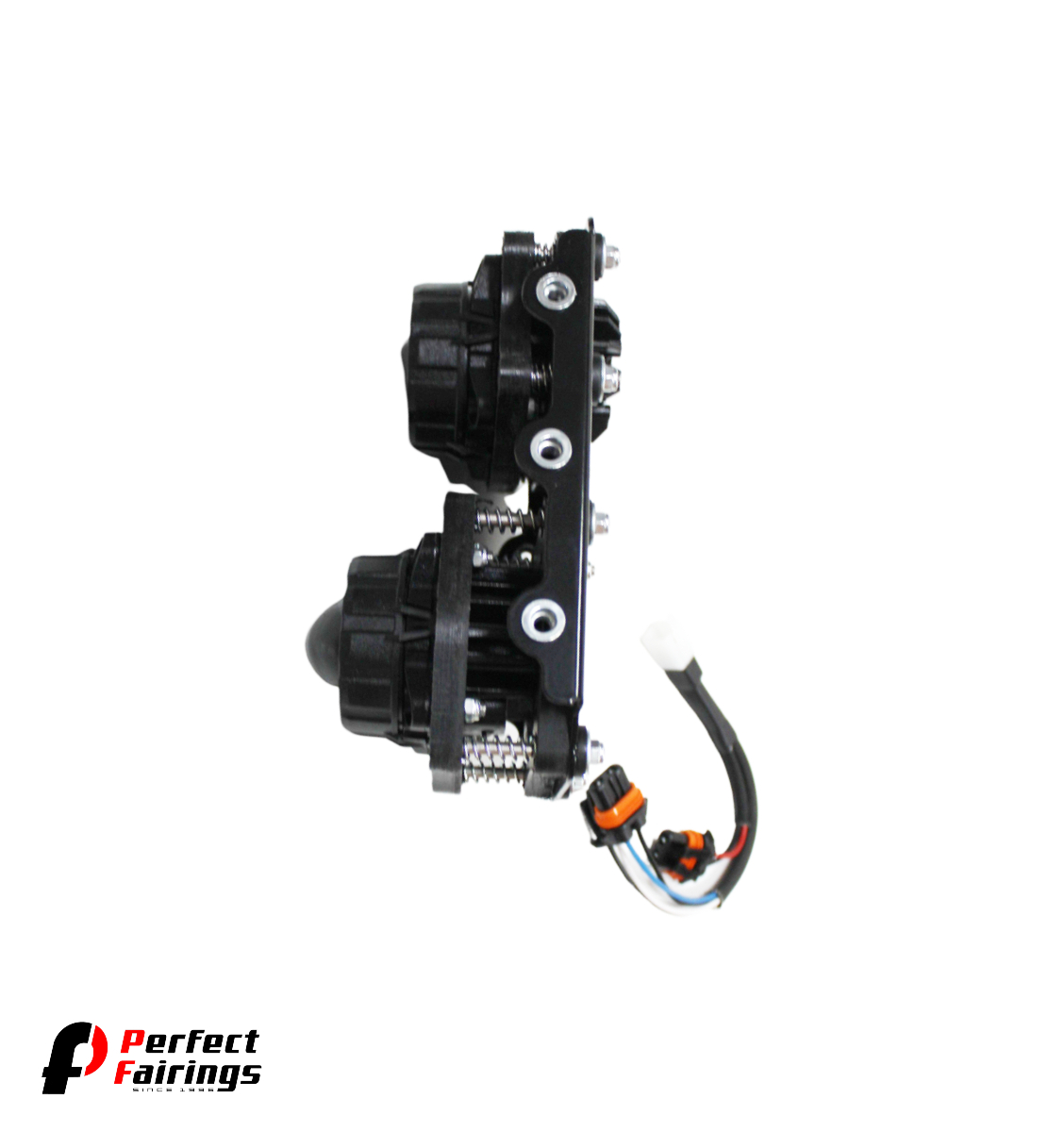

Headlight bracket:
Hight quality aluminium made bracket , with 3 threaded inserts per side for an easy and fast installation almost everywhere.Finished in black powder coat
Headlights wiring harness:
Wiring harness made under OEM specifications and ISO certification .
